Availability : 2 - 3 weeks

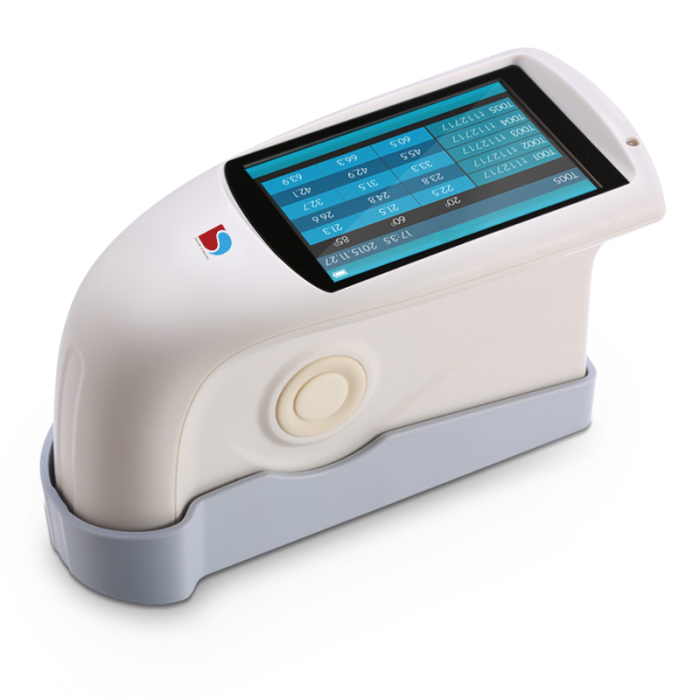

Digital Gloss Meter GM-2060L is a semi-gloss meter suitable for the glossiness measurement of architectural material gloss coatings, plastics, used to reflect images less distinctly and reduced intensity, light is scattered producing the reflected image to seem diffused.
The 60º measuring angle can be used for any surface, from dull to shiny. To accomplish good gloss measurements on high gloss surfaces the 20° angle is offered, whereas for low gloss surfaces the 85° angle is best. T
he Digital Gloss Meter is a single measurement mode: Basic mode with storage capacity up to 1000. Ergonomics designed, small, lightweight and robust. Certify by international standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457.
| measuring_angle | 60� |
|---|---|
| source | - |
| aperture | - |
| detector | - |
| geometry | - |
| repeatability | - |
| measurement_range | 0 to 300GU |
| resolution | 0.1GU |
| wavelength | - |
| model | GM-2060L |
|
Model |
GM-2060 |
GM-2060L |
GM-2080T |
|
Measuring Angle |
60° |
20°/60°/85° |
|
|
Range |
0 to 200GU |
0 to 300GU |
20°:0 to 1000GU 60°:0 to 1000GU 85°?0 to 160GU |
|
Resolution |
1GU |
0.1GU |
|
|
Measuring Mode |
Basic mode |
||
|
Repeatability |
±1GU |
± 0.1GU/ ± 0.2GU/ ± 0.2%GU |
|
|
Calibration |
Manual |
||
|
Display |
3.5 inch TFT |
||
|
Operating Temperature |
0 to 40? |
||
|
Storing Temperature |
-20 to 50? |
||
|
Interface |
USB/RS-232 |
||
|
Batteries |
3.7V,3200mAh Li-ion Battery |
||
|
Certifications |
ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 |
||
|
Dimension |
160x75x90mm |
||
|
Weight |
3.5 kg |
||
|
Catalogue No. |
1501020-04 |
15001025-04 |
1501030-04 |
