Availability : 2 - 3 weeks

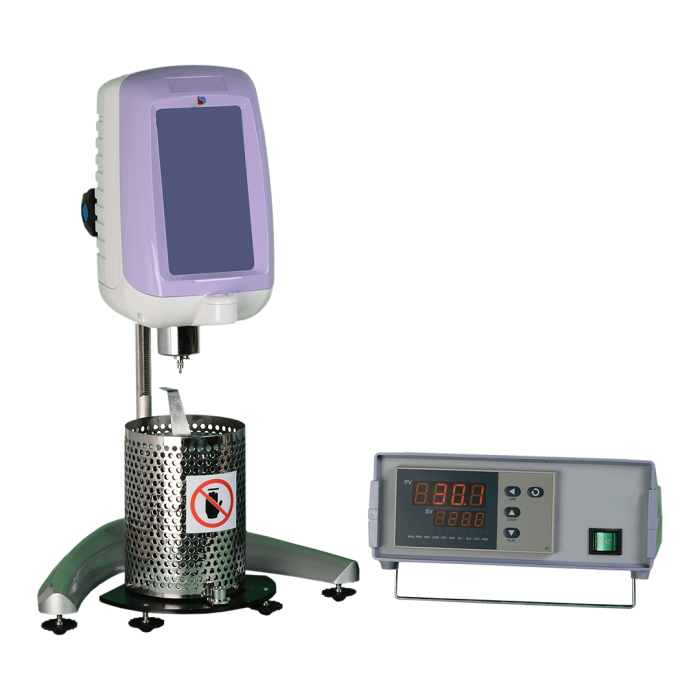

Digital Viscometer VM-440 contain spindles with axle featuring and makes the technology essentially for sectors such as the pharma, cyanoacrylate, coating, pasteurization, cosmetic, beverage, brewing, textile, printing industries and other solvent based solutions, polymer, rubber, oil etc.
Crafted with 7-inch touch screen LCD display along with manual and intelligent controller, RTD temperature probe, ARM sensor, micro printer with multi-layer graphics feature gives accuracy of ±1 % with repeatability of ±0.5% and easy calibration assuring precession.
| speed | 0.1 to 200 rpm |
|---|---|
| reproducibility | �0.5% |
| measurement_range | 1 to 6 Million, 4 to 80 Million |
| temperature_range | 0 to 100 �C |
| model | VM-440 |
|
Model No. |
VM-410 |
VM-420 |
VM-430 |
VM-440 |
|||||
|
Range (mPa.s)
|
1 to 0.6 Million
|
1 to 6 Million
|
L:1 to 2 Million |
1 to 6 Million 4 to 80 Million
|
|||||
|
R:100 to 13 Million |
|||||||||
|
HA:200 to 26 Million |
|||||||||
|
HB: 800 to 104 Million |
|||||||||
|
RPM |
1 to 60 |
0.1 to 100 |
0.1 to 100 |
0.1 to 200 |
|||||
|
Control |
Manual |
Manual/Intelligent |
|||||||
|
Spindles Type |
LV, RV, HA, HB Series |
||||||||
|
Spindle No. |
(LV) 1, 2, 3, 4; (RV,HA,HB) 2, 3, 4, 5, 6, 7 |
||||||||
|
Probe |
RTD |
||||||||
|
Probe Temperature |
0 to 100 °C |
||||||||
|
Display |
7-inch LCD touch screen |
||||||||
|
Accuracy |
±1.0% |
||||||||
|
Repeatability |
±0.5% |
||||||||
|
Electrical Requirement |
AC100V |
AC240V |
AC100V |
AC240V |
AC100V |
AC240V |
AC100V |
AC240V |
|
|
Catalogue |
650200501 |
650200502 |
650201001 |
650201002 |
650201501 |
650201502 |
650202001 |
650202002 |
|
