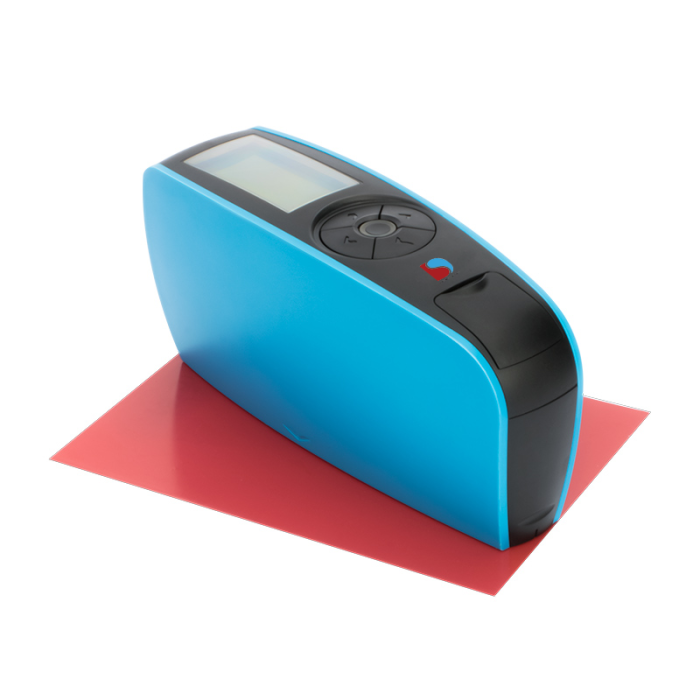

Gloss Meter GM-1060 L

Gloss Meter GM-1060L measures gloss units (GU) in manufacturing industries of painted, coated and shiny surfaces with angle measurements typically 60° reflective angles.

The Gloss Meter has four measurement modes: Basic mode; Statistic mode; Continuous mode; QC mode. Certify by international standard ISO2813, ASTM523, GB/T9754. Compatible with the standards accessories user manual, calibration plate, QC software, and USB cable. Auto-calibration function

Function of different modes:

1. Basic mode: For single measurement. The outcomes will be saved automatically. Data used as the standard in Statistic Mode. It can display 5 sets test data simultaneously.
2. Statistic mode: For multi measurement of sample.
3. Continuous mode: For measuring large area samples and evaluate homogeneity of large-area samples.
4. QC mode: for quality analysis of sample.

• 20° = high gloss coatings, plastics, brightened metal and similar materials
• 60 ° = medium (semi) gloss coatings, plastics, brightened metal and similar materials
• 85° = low gloss coatings, plastics, brightened metal and similar materials
