Availability : 2 - 3 weeks

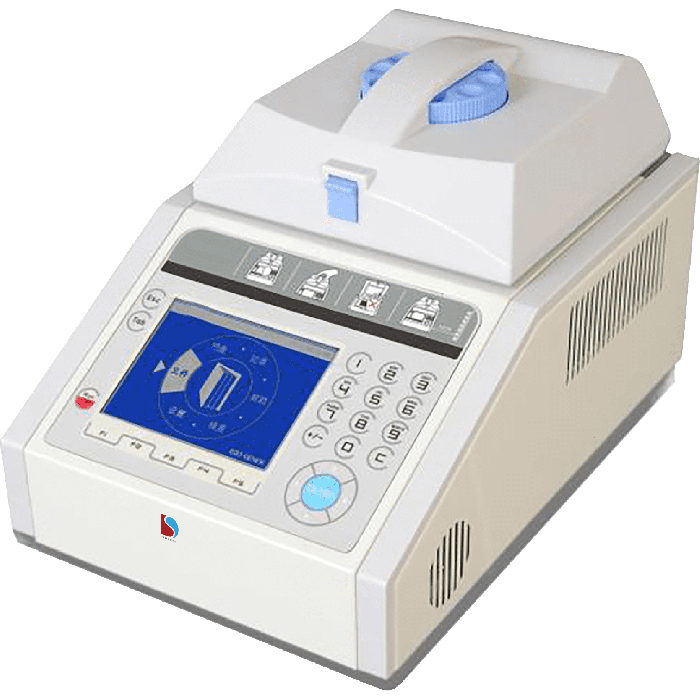

Gradient Thermal Cyclers TCG-1110 offers superior performance and a large color touch screen for easy programming. This fully modular platform is able to accommodate different throughput needs with easily interchangeable reaction modules that swap in seconds without tools. Each PCR module has a fully adjustable heated lid that supports a wide range of vessels and sealers, including low-profile and standard-height PCR plates.
Gradient Thermal Cyclers TCG-1110 accommodates 96×0.2 ml and this block is completely independently of each other and without interference. Standard Marlow Peltier along with graphical LCD display and responsive color touch screen shortens device processes with an easy to read interface and maximum ramping rate 0.1 to 4.5?.Semiconductor based technology using advanced Peltier heating units with 6 long service life.
| number_of_cycle | 99 |
|---|---|
| gradient_temp_range | 30 to 99.9? |
| power | 600 W |
| resolution | 0.1? |
| temperature_range | 0 to 99.9? |
| capacity | 96�0.2 ml |
| model | TCG-1110 |
|
Model |
TCG-1010 |
TCG-1110 |
TCG-1210 |
TCG-1310 |
TCG-1410 |
TCG-1510 |
TCG-1610 |
TCG-1710 |
|
Capacity |
96×0.2 ml |
96×0.2 ml + 77×0.5 ml |
54×0.5 ml |
384 well |
||||
|
Display |
LCD, Graphical, 5.7 inch?320×240 pixels |
|||||||
|
Temperature Range |
0 to 99.9? |
|||||||
|
Number of Programs |
200 |
|||||||
|
Uniformity |
≤±0.3? |
|||||||
|
Accuracy |
≤±0.2? |
|||||||
|
Resolution |
0.1? |
|||||||
|
Number of Cycle |
99 |
|||||||
|
Number of Step |
9 |
|||||||
|
Holding Temperature |
4? |
|||||||
|
Temperature Control |
Block/Tube |
|||||||
|
Heating Rate |
4.5?/s |
|||||||
|
Cooling Rate |
4?/s |
|||||||
|
Ramping Rate Adjustable |
0.1 to 4.5? |
|||||||
|
Gradient Temp. Range |
- |
30 to 99.9? |
- |
30 to 99.9? |
- |
30 to 99.9? |
- |
30 to 99.9? |
|
Gradient Uniformity |
- |
≤±0.3? |
- |
≤±0.3? |
- |
≤±0.3? |
- |
≤±0.3? |
|
Gradient Accuracy |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
|
Gradient Spread |
- |
1 to 30? |
- |
1 to 30? |
- |
1 to 30? |
- |
1 to 30? |
|
Hot Lid Height Adjustable |
Step less Adjustable |
|||||||
|
Hot Lid Temperature |
30 to 110? |
|||||||
|
Increase/Decrease in Time |
0.1 to 9.9? |
|||||||
|
Power consumption |
600 W |
|||||||
|
Overall Dimensions |
392×262×252 mm |
|||||||
|
Net Weight |
10 kg |
|||||||
|
Electrical Requirements |
264 VAC , 50 to 60 Hz |
|||||||
|
Catalogue No. |
620150503 |
620151003 |
620151503 |
620152003 |
620152503 |
620153003 |
620153503 |
620154003 |
