Availability : 2 - 3 weeks

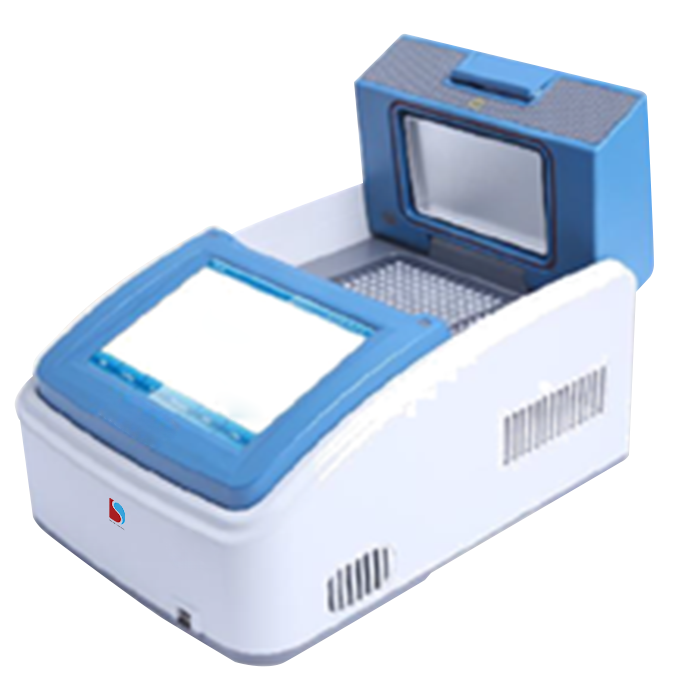

Gradient Thermal Cyclers TCG-2000 has been used in Clinical detection in hospital, professional, expert. Accommodates 2 different wells including 96×0.2 ml, adaptive to 8-well strip PCR tubes and 96-well plates and this block is completely independently of each other and without interference. Fabricated for easy-to-use, compressed, and accurate thermal cycler to fit every necessary PCR workflow.
| number_of_cycle | 100 |
|---|---|
| gradient_temp_range | 1 to 30�C |
| power | - |
| resolution | - |
| temperature_range | 4 to 100�C |
| capacity | 96�0.2 ml, adaptive to 8-well strip PCR tubes and 96-well plates |
| model | TCG-2000 |
|
Model |
TCG-2000 |
|
Capacity |
96×0.2 ml, adaptive to 8-well strip PCR tubes and 96-well plates |
|
Display |
8 inch TFT |
|
Temperature Range |
4 to 100°C |
|
Program Memory |
10000+(USB Flash) |
|
Temperature Control Pattern |
Semiconductor TE |
|
HOT lid |
Electronic |
|
Number of Cycle |
100 |
|
Number of Step |
30 |
|
Temperature Control |
4 |
|
Temperature Adjustable Rate |
0.1 to 5°C |
|
Temperature Uniformity |
± 0.2°C |
|
Temperature Accuracy |
± 0.1°C |
|
Temperature Gradient Range |
1 to 30°C |
|
Hot Lid Temperature |
30 to 110°C |
|
Heating Rate |
≥5°C |
|
Cooling Rate |
≥4°C |
|
Operating System |
WinCE |
|
Connectivity |
USB 2.0 |
|
Dimensions |
380×240×260 mm |
|
Weight |
8.5 kg |
|
Electrical Requirements |
AC100 to 264 V/50Hz, 66 Hz |
|
Catalogue No. |
620200503 |
