Availability : 2 - 3 weeks

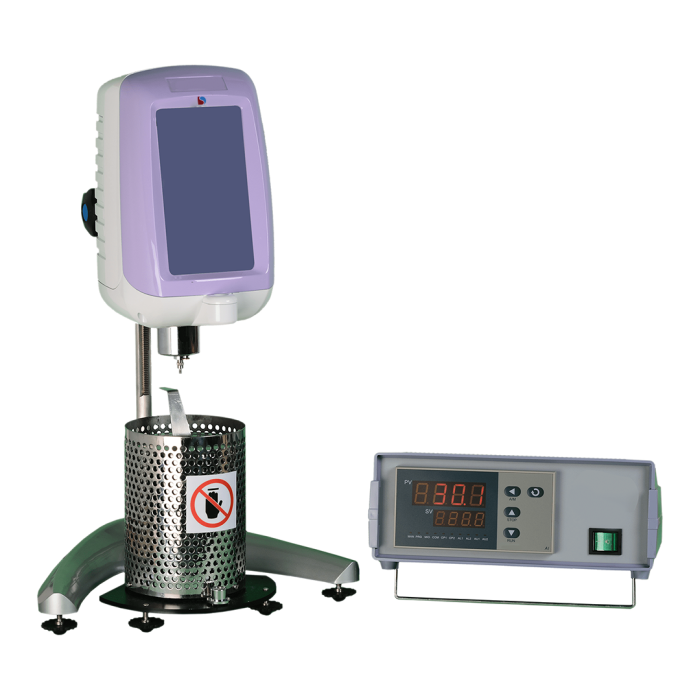

High-Temperature Viscometer DVM-1400 is suitable for Cyanoacrylate, adhesive, pharma, pasteurizing, textile, coating, food, beverage, agriculture, perfume industries, and personal care products, biomaterials, resins, polymer, varnish, petroleum product, grease, and more in qualitative analysis.
Designed with a 7-inch LCD touch screen, easy to change spindles with 4 standard spindles of groove no. 21, 27, 28, 29, and 0 as optional. The model requires comparatively less sample size, comes along with 16-bit micro-computer and SNB software gives an accurate, precise and fast reading for shear rate and stress with respect to time, easy auto-calibration and a high temperature it is able to measure both low and high viscosity from 1 to 10M range with accuracy ±1.0%.
| speed | 0.1 to 200 RPM |
|---|---|
| reproducibility | - |
| measurement_range | 50 to 10 mPa.s |
| temperature_range | 10 �C to 500 �C |
| model | DVM-1400 |
|
Model No. |
DVM-1200 |
DVM-1400 |
|
|
High Viscosity Range |
50 to 10 mPa.s |
||
|
Limit |
5 mPa.s |
||
|
Low Viscosity Range (mPa.s) |
5 - 1 million |
||
|
Limit (mPa.s) |
1 |
||
|
Temperature |
10 °C to 250 °C |
10 °C to 500 °C |
|
|
Accuracy |
+ 0.1 °C. |
||
|
No. of Rotors (both) |
5 (standard:21,27,28,29; optional:0) |
||
|
Rotor Speed |
0.1 to 200 RPM |
||
|
Type of Rotor |
CVT (no gear drive). |
||
|
Probe |
RTD |
||
|
Range |
0 to 100°C |
||
|
Display |
7-inch LCD touch screen |
||
|
Accuracy |
± 1.0% |
||
|
Repeatability |
± 0.2% |
||
|
Electrical Requirement |
AC100V/50Hz |
AC240V/60Hz |
|
|
Catalogue No |
650600501 |
650601002 |
|
