Availability : 2 - 3 weeks

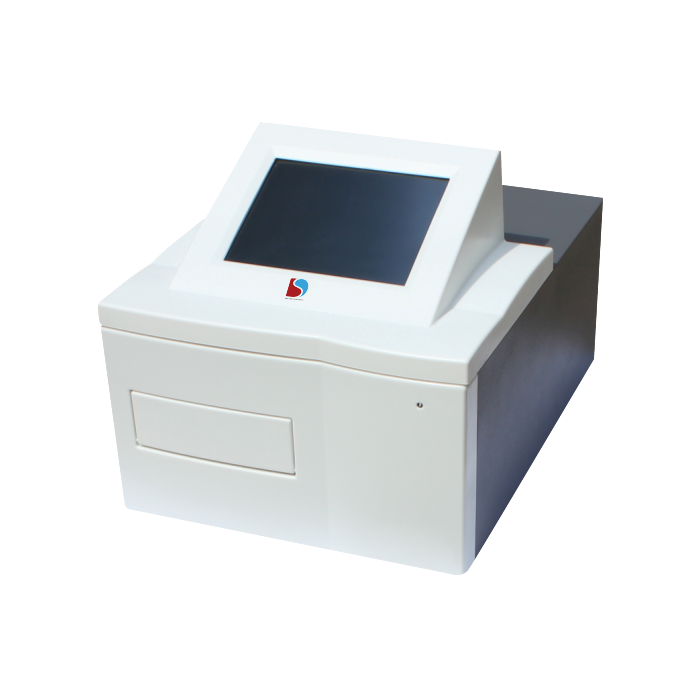

Microplate Reader MR-3200 has professional software and 3 vibrational linear plate functions for laboratory application. Standard accessories for use with standard 96, and 384 wells plates.
Covers the full wavelength range 400 to 1000 nm and measured as quickly as 6 second per well. Can stored up to 200 groups program and 10000 sample result, more than 10 types of curve fitting equation.
Maintain all important measuring parameters including Endpoint method, kinetic method, inhibition rate, single or dual wavelength measurement function. The built-in multi filter wheel make detection of multiple luminescence wavelengths possible.
| residual_volume | - |
|---|---|
| volume | - |
| model_type | 96, and 384 wells plates |
| power | - |
| resolution | 0.001 Abs |
| wavelength | 400 to 1000 nm |
| capacity | - |
| model | MR-3200 |
|
Model |
MR-3200 |
|
Wavelength |
400 to 1000 nm |
|
Optical Path |
8-channels |
|
Light source |
Tungsten Halogen Lamp(22W) |
|
Optical filter |
10 filters( Default configuration 405,450,492,630 nm) |
|
Accuracy |
≤±0.01 Abs |
|
Repeatability |
≤0.3% |
|
Resolution |
0.001 Abs |
|
Display |
7-inch LCD |
|
Reading Range |
0 to 4 Abs |
|
Linear Range |
0 to 3 Abs |
|
Stability |
- |
|
Vibration Plate |
- |
|
Analysis software |
Professional software |
|
Storage |
200 groups program and 10000 sample result, more than 10 types of curve fitting equation |
|
Function |
Endpoint method, kinetic method, inhibition rate, single or dual wavelength measurement |
|
Interface |
Wi-Fi |
|
Dimensions |
400x260x200 mm |
|
Weight |
6 kg |
|
Electrical Requirement |
DC12V 5A |
|
Catalogue No. |
4202005-04 |
