Availability : 2 - 3 weeks

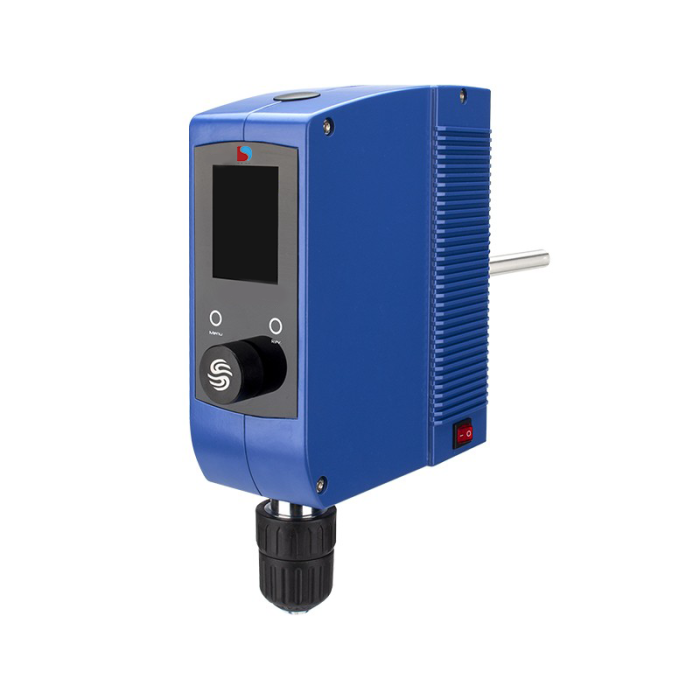

The Overhead Stirrers OS-2300 smart laboratory companions which give you complete control over complex stirring processes. It has a speed range of up to 3000 rpm.
| liquid_temperature_range | - |
|---|---|
| plate_temperature_range | - |
| maximum_viscosity | 70000 cps |
| speed | Low: 40-1200 /�High: 1200-6000 |
| power | 150W |
| capacity | - |
| model | OS-2300 |
|
Model |
OS-2100 |
OS-2200 |
OS-2300 |
|||
|
Display/ Control Mode |
LED Digital Display / On-Touch Control |
LED Digital Display / On-Touch Control |
LED Digital Display / On-Touch Control |
|||
|
Speed Accuracy (rpm) |
± 1 |
± 1 |
± 1 |
|||
|
Torque Accuracy |
± 5% |
± 5% |
± 5% |
|||
|
Speed Range (rpm) |
Low: 20~600 / High: 600~3000 |
Low: 12~360 / High: 360~1800 |
Low: 40~1200 / High: 1200~6000 |
|||
|
Corresponding Torque (N-cm) |
Low: 339 / High: 68 |
Low: 565 / High: 113 |
Low: 170 / High: 34 |
|||
|
Maximum Viscosity (cps) |
100,000 |
150,000 |
70,000 |
|||
|
Maximum Torque (N-cm) |
339 |
565 |
170 |
|||
|
Maximum Capacity (L) |
40 |
40 |
40 |
|||
|
Output Power (W) |
150 |
150 |
150 |
|||
|
Dimensions (W x L x H in mm) |
200 x 95 x 230 |
200 x 95 x 230 |
200 x 95 x 230 |
|||
|
Net Weight (kg) |
5 |
5 |
5 |
|||
|
Electrical Requirements |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
|
Catalogue No. |
600102501 |
600102502 |
600103001 |
600103002 |
600103501 |
600103502 |
