Availability : 2 - 3 weeks

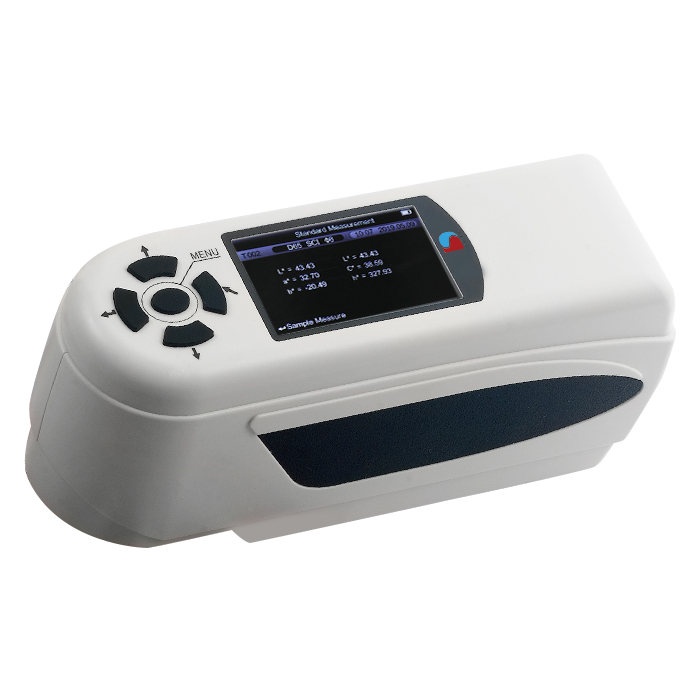

Portable Colorimeter PC-320 with black and white calibration advanced PC software, and d/8° measuring geometry.
The corresponding software serial number and password protection are configured in the colorimeter.
Suitable for color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc. Illumination locating is a quick, simple, and suitable locating function.
| measuring_angle | - |
|---|---|
| source | LED blue light excitation |
| aperture | 8mm |
| detector | Silicon photoelectric diode |
| geometry | 8/d |
| repeatability | 0.07 |
| measurement_range | - |
| resolution | - |
| wavelength | - |
| model | PC-320 |
|
Model |
PC-310 |
PC-320 |
PC-330 |
|
Geometry |
8/d |
||
|
Aperture |
8mm |
8 mm or 4 mm |
|
|
Detector |
Silicon photoelectric diode |
||
|
Repeatability |
0.08 |
0.07 |
0.06 |
|
Operating Temperature |
-10 to 40? |
||
|
Source |
LED blue light excitation |
||
|
Humidity |
0 to 85 % |
||
|
Interface |
USB |
||
|
Batteries |
Rechargeable lithium-ion battery |
||
|
Storage |
100pcs standards 20000pcs samples |
||
|
Dimensions |
205×70×100 mm |
||
|
Weight |
5 kg |
||
|
Electrical Requirement |
3.7V |
||
|
Catalogue No. |
1500525-04 |
1500530-04 |
1500535-04 |
