Availability : 2 - 3 weeks

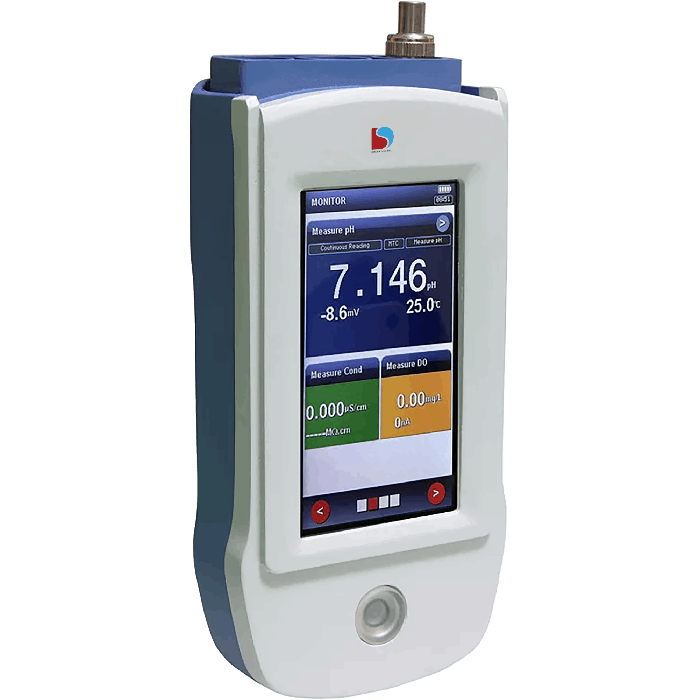

Portable Conductivity Meter CM-215 provides the ideal solution for measuring TDS, DO, pH, pX, temperature, Salinity, DO Saturation all these parameters. The Conductivity meter is best for observing different applications such as the number of salts or dissolved solids in water.
The readings are mechanically temperature compensated with the range of -5 to 135?, delivers accurate reading over the entire range and manual temperature calibration to correct temperature deviation. CE Certified. Designed to increase productivity in the lab and in the field.
Conductivity / TDS / Salinity / Resistivity Mode: 6-point conductivity meter calibration with automatic temperature compensation ranging COND:0.0 to 100.0?; salinity: 0 to 50 g/L. Support selectable ion such as H+, Ag+, Na+, K+, Cl-, F etc. Standard configuration including platinum black conductivity electrode, DO probe and standard buffer.
pH Mode: High accuracy portable multipara meter water quality meter is equipped with a large backlit LCD display. 1 to 5 points pH calibration with auto-buffer recognition with automatic temperature compensation ranging from pH: 0.0 to 100.0? Standard configuration including pH combination electrode. Selectable automatic identification of 25 kinds of buffer solutions, including DIN and NIST. The automatic electrode slope display helps users decide whether to replace the sensor.
DO Mode: With automatic temperature compensation ranging from 0.0 to 40.0?. Air-saturated water and zero oxygen solution.
| source | - |
|---|---|
| calibration | - |
| ion_concentration_accuracy | - |
| ion_concentration_range | - |
| ntu_range | - |
| sample_bottle | - |
| sample_capacity | - |
| do_accuracy | �0.30 mg/L |
| do_saturation_range | - |
| do_range | 0 to 99.99 mg/L |
| conductivity_accuracy | - |
| conductivity_resolution | - |
| conductivity_range | - |
| temperature_compensation | Auto, pH: 0.0 to 100.0?; COND: 0.0 to 100.0?; DO: 0.0 to 40.0?� |
| mv_accuracy | - |
| mv_resolution | - |
| mv_range | - |
| ph_accuracy | - |
| ph_resolution | - |
| ph_range | - |
| model_type | - |
| temperature_range | -5 to 135? |
| wavelength | - |
| model | CM-215 |
|
Model |
CM-205 |
CM-210 |
CM-215 |
CM-220 |
|
Parameter |
Cond/ DO/pH/pX/?/ TDS/ Salinity/ DO Saturation |
|||
|
Display |
TFT Touch screen |
Backlit LCD |
||
|
pH/pX Range |
-2 to 19.999 |
- |
||
|
pH/pX Resolution |
0.001 |
- |
||
|
pH/pX Accuracy |
±0.002 |
- |
||
|
Conductivity Range |
0 μs/cm to 199.9 ?S/cm |
- |
0 μs/cm to 199.9 ?S/cm |
|
|
Conductivity Resolution |
- |
|||
|
Conductivity Accuracy |
±0.5% FS |
- |
±0.5% FS |
|
|
Resistivity Range |
0 Ω·cm to 20 MΩ·cm |
- |
0 Ω·cm to 20 MΩ·cm |
|
|
Resistivity Accuracy |
±0.5% FS |
- |
±0.5% FS |
|
|
Temperature Range |
-5 to 135? |
|||
|
Temperature Resolution |
0.1? |
|||
|
Temperature Accuracy |
±0.3? |
|||
|
TDS Range |
0 mg/L to 100 g/L |
- |
0 mg/L to 100 g/L |
|
|
Salinity Range |
0 to 8 % |
- |
0 to 8 % |
|
|
Salinity Accuracy |
±0.1 % |
- |
±0.1 % |
|
|
DO Range |
0 to 99.99 mg/L |
- |
0 to 99.99 mg/L |
|
|
DO Resolution |
0.01 mg/L |
- |
0.01 mg/L |
|
|
DO Accuracy |
±0.30 mg/L |
- |
±0.30 mg/L |
|
|
DO Saturation/Concentration Range |
0 to 199.9 % |
- |
0 to 199.9 % |
|
|
DO Saturation/Concentration Resolution |
0.01 mg/L |
- |
0.01 mg/L |
|
|
DO Saturation/ Concentration Accuracy |
0.10% |
- |
0.10% |
|
|
Ion Concentration Range |
0 to 19990 ug/L,mg/L,g/L,mol/L,mmol/L |
- |
||
|
Temperature Compensation |
Auto, pH: 0.0 to 100.0?; COND: 0.0 to 100.0?; DO: 0.0 to 40.0? |
|||
|
Calibration |
0- Offset and Full Scale |
- |
- |
0 Offset and Full Scale |
|
Ion Mode |
H+,Ag+,Na+,K+,Cl-,F |
- |
||
|
Measuring Mode |
3 mode |
|||
|
Certification |
CE |
|||
|
Storage |
2200 sets |
|||
|
Interface |
USB |
|||
|
Electrical Requirement |
Li-on Battery , 1.1DC |
|||
|
Catalogue No. |
7101025-04 |
7101030-04 |
7101035-04 |
7101040-04 |
