Availability : 2 - 3 weeks

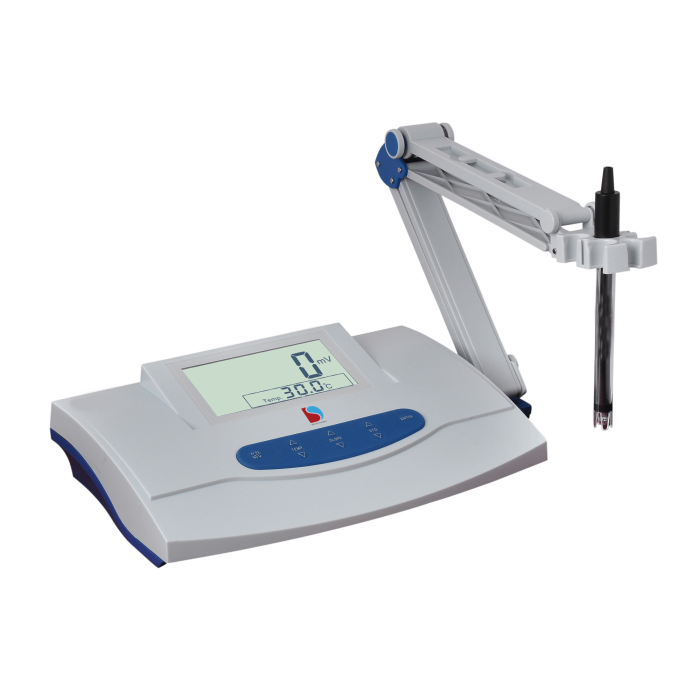

Portable pH Meter PM-205 delivers very quick, consistent, and reliable measurements in very less time. This series provided with new features that add a completely new measurement to dramatically recover the reliability of the measurement.
The manual and automatic temperature compensation for good precision under variable temperatures. Ideal for method management, electrode management, calibration management, data management, user management with manage up to 5 pH electrodes and detect 25 kinds of buffer solutions automatically. Offer 1 to 6 calibration points with automatic recognition for USA, NIST, and DIN buffers. RS232 and USB interface.
| source | - |
|---|---|
| calibration | 2 points� |
| ion_concentration_accuracy | - |
| ion_concentration_range | - |
| ntu_range | - |
| sample_bottle | - |
| sample_capacity | - |
| do_accuracy | - |
| do_saturation_range | - |
| do_range | - |
| conductivity_accuracy | - |
| conductivity_resolution | - |
| conductivity_range | - |
| mv_accuracy | �0.1%FS |
| mv_resolution | 1 |
| mv_range | -1999 to 1999 |
| ph_accuracy | �0.01�1 bit |
| ph_resolution | 0.01 |
| ph_range | -2.00 to 18.00 |
| model_type | Portable |
| temperature_range | 0.0 to 99.9? |
| wavelength | - |
| model | PM-205 |
|
Model |
PM-205 |
PM-210 |
PM-215 |
PM-220 |
PM-225 |
|
Type |
portable |
||||
|
Display |
LCD |
TFT touch screen |
LCD |
||
|
pH Range |
-2.00 to 18.00 |
0.00 to 14.00 |
-2.000 to 20.000 |
-2.000 to 20.000 |
|
|
pH Resolution |
0.01 |
0.001 |
0.1/0.01/0.001 |
0.01 |
|
|
pH Accuracy |
±0.01±1 bit |
±0.002 |
±0.002±1 bit |
±0.01±1 bit |
|
|
mV Range |
-1999 to 1999 |
-2000.00 to 2000.00 |
-1999.9 to 1999.9 |
-1999 to 1999 |
|
|
mV Resolution |
1 |
0.01 |
0.1 |
1 |
|
|
mV Accuracy |
±0.1%FS |
±0.03%FS |
±0.03%FS |
±0.1%FS |
|
|
Temperature Range |
0.0 to 99.9? |
- |
-5.0 to 130.0? |
-5.0 to 110.0? |
-5.0 to 135.0? |
|
Temperature Resolution |
0.1? |
- |
0.1? |
0.1? |
0.1? |
|
Temperature Accuracy |
±0.3?±1 bit |
- |
±0.1? |
±0.2?±1 bit |
±0.2?±1 bit |
|
Calibration |
2 points |
6 points |
1 to 2 point |
||
|
Stability |
(±0.01pH±1 bit)/3h |
(±0.002pH±1 bit)/3h |
(±0.002pH±1 bit)/3h |
(±0.01pH±1 bit)/3h |
|
|
Buffer recognition |
Automatic: 4.00,6.86,9.18 |
Automatic, USA/NIST |
- |
||
|
Parameter |
pH/mV/Temperature |
pH/mV |
pH/mV/Temperature |
pH/mV(ORP)/Temperature |
|
|
Certification |
CE |
||||
|
Storage |
- |
1000 set |
500 set |
200 set |
|
|
Interface |
- |
RS232, USB |
USB |
||
|
Dimensions |
300x220x90 mm |
280 x 280 x130 mm |
280x215x92 mm |
||
|
Weight |
1.3 kg |
2.5 kg |
10 kg |
||
|
Catalogue No. |
7100520-04 |
7100525-04 |
7100530-04 |
7100535-04 |
7100540-04 |
