Availability : 2 - 3 weeks

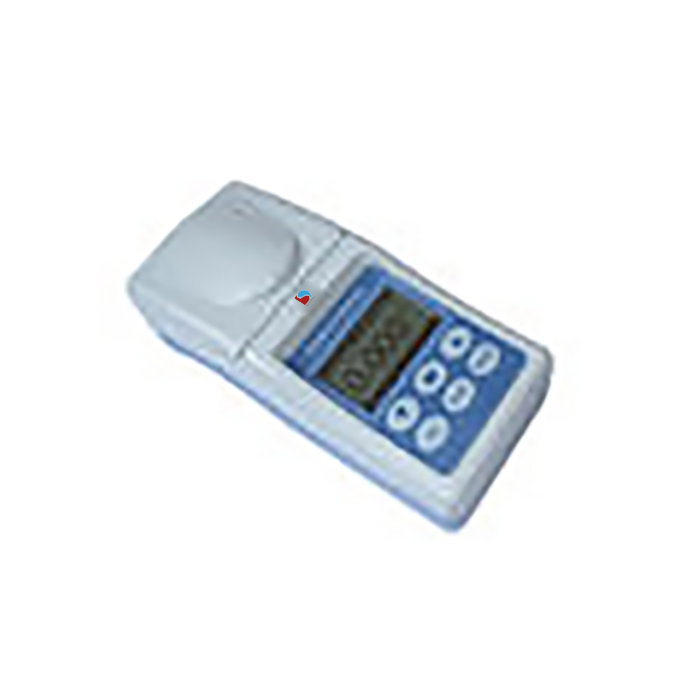

Portable Turbidity Meter PTM-107 with quick measurement of the turbidity of the water, caused by dry-weight of suspended materials.
The portable turbidity meter work by measuring the amount of light scattered by the dry-weight of suspended materials. Accommodated multi-points calibrations with FTU standard with other measurement units for turbidity and the user now has the choice to perform NTU, EBC, and ASBC measurements at 90° scattered light according to the application and standard required.
This Turbidity Meter covers the ISO7027 requirements. The portable turbidity meter's measuring range is from 0 to 2000 NTU and is identified automatically. Precise measurements by the portable turbidity meters in the lower range, e.g. in drinking water are no problem.
| source | LED |
|---|---|
| calibration | 7 points |
| ion_concentration_accuracy | - |
| ion_concentration_range | - |
| ntu_range | 0.00 to 20.0/20.1 to 200/200.01 to 2000 |
| sample_bottle | 25�65 mm |
| sample_capacity | 20 to 25 ml |
| do_accuracy | - |
| do_saturation_range | - |
| do_range | - |
| conductivity_accuracy | - |
| conductivity_resolution | - |
| conductivity_range | - |
| temperature_compensation | - |
| mv_accuracy | - |
| mv_resolution | - |
| mv_range | - |
| ph_accuracy | - |
| ph_resolution | - |
| ph_range | - |
| model_type | - |
| temperature_range | - |
| wavelength | 860 nm |
| model | PTM-107 |
|
Model |
PTM-104 |
PTM-105 |
PTM-106 |
PTM-107 |
|
Wavelength |
860 nm |
|||
|
Sample Capacity |
20 to 25 ml |
|||
|
Sample Bottle |
25×65 mm |
|||
|
Source |
LED |
|||
|
Display |
LCD |
|||
|
NTU Range |
automatic range switchover , 0.00 to 20.0 and 20.1 to 200 |
0.00 to 20.0/20.1 to 200/200.01 to 500
|
0.00 to 20.0/20.1 to 200/200.01 to 1000 |
0.00 to 20.0/20.1 to 200/200.01 to 2000 |
|
0-Drift |
≤±0.5%FS |
|||
|
Stability |
≤±0.5%FS |
|||
|
Measurement Unit |
NTU,FTU,EBC,ASBC |
|||
|
Repeatability |
≤0.5% |
|||
|
Calibration |
4 points |
5 points |
6 points |
7 points |
|
Certification |
CE |
|||
|
Storage |
2000 sets |
|||
|
Interface |
USB |
|||
|
Dimension |
380x280x250 mm |
|||
|
Weight |
3Kg |
|||
|
Catalogue No. |
7102005-04 |
7102010-04 |
7102015-04 |
7102020-04 |
