Availability : 2 - 3 weeks

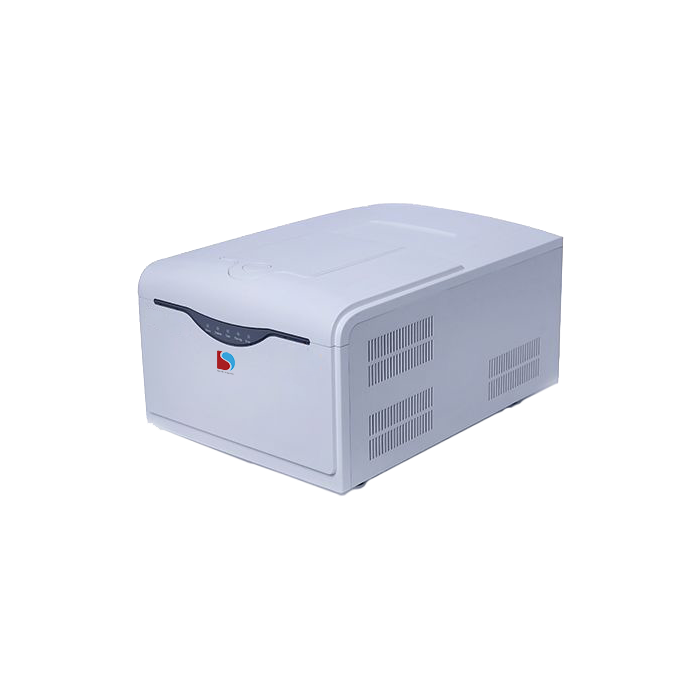

Based on real-time fluorescence quantitative polymerase chain reaction (PCR) technology, RTR-5000 can be widely used in researches such as immunology, human genome engineering, forensic medicine, oncology, histology, population biology, palaeobiology, zoology and botany, as well as in clinical diagnosis of viruses, tumours and hereditary diseases, etc.
| number_of_cycle | - |
|---|---|
| gradient_temp_range | - |
| power | - |
| resolution | - |
| temperature_range | 4-100? |
| capacity | 96x0.2ml |
| model | RTR-5000 |
|
Model |
RTR-5000 |
|
Sample Capacity |
96x0.2ml |
|
Light Source |
Halogen lamp |
|
Detection System |
CCD |
|
Temperature Range |
4-100? |
|
Sensitivity |
up to 1 copy |
|
Test Dynamic Range |
100-1010 |
|
Reaction Volume |
5-100μl |
|
Fluorophores Applicable |
F1?FAM?SYBR F2?VIC?HEX?JOE?TET? |
|
|
F3?ROX?Texas Red F4?CY5 F5?CY5.5, Quasar705 |
|
|
F6-F8?Reserved |
|
Hot Lid |
Electronic hot-lid |
|
Temp. Control |
Semiconductor TE |
|
Uniformity |
±0.2? |
|
Accuracy |
±0.1? |
|
Heating Rate |
≥4.5?/s |
|
Cooling Rate |
≥4.5?/s |
|
Hot-lid Temp. Range |
30-105? |
|
Fluorescence Repeatibility |
CV ≤ 1% |
|
Fluorescence Extraction Location |
Tube Bottom |
|
Communication Interface |
USB 2.0 |
|
Operation System |
Windows Vista/7/8/10 |
|
Input Power |
100-240V, 50/60Hz, 1000VA |
|
Dimension (L*W*H) |
500x350x300 mm |
|
Electrical Requirement |
|
|
Catalogue No. |
6206505-00 |
