Availability : 2 - 3 weeks

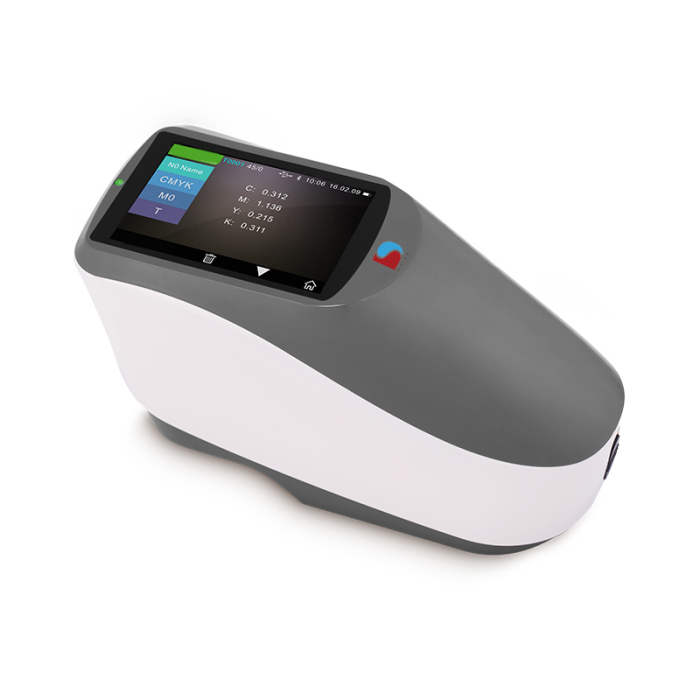

Spectrodensitometer SD-110 measures the density of a sample which is only a measure of the absorbance of ink, film processing, and textile and dyeing printing at 400 to 700 nm wavelengths range of light.
It is a compact, portable, and cost-effective device. We offer global standards for 45/0 geometry of a transmission densitometer, including the transmission of the light source, allowing accurate measurement.
Spectrodensitometer is used for color measurement and quality control, especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing. Accomplished measuring densities within 0.01 D. Customize 2 mm, 4 mm, and 8 mm single aperture, can measure observer at 2°/10° and offer temperature control to one of the widest in the industry giving you the correct temperature for your measurement application.
| measuring_angle | - |
|---|---|
| source | Combined LED Light, UV Light |
| aperture | - |
| detector | 256 Image Element Double Array CMOS Image Sensor |
| geometry | 45/0 |
| repeatability | 0.01 D |
| measurement_range | - |
| resolution | - |
| wavelength | 400 to 700 nm |
| model | SD-110 |
|
Model |
SD-110 |
SD-120 |
|
Wavelength Range |
400 to 700 nm |
|
|
Geometry |
45/0 |
|
|
Light Source |
Combined LED Light, UV Light |
|
|
Spectral Separation Device |
Concave Grating |
|
|
Detector |
256 Image Element Double Array CMOS Image Sensor |
|
|
Half Bandwidth |
10 nm |
|
|
Density index |
Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error and gray level |
|
|
Observer |
2°/10° |
|
|
Repeatability |
0.01 D |
|
|
Measurement Mode |
Single Measurement, Average Measurement |
|
|
Display |
3.5-inch TFT color LCD |
|
|
Storage Temperature |
0 to 40? |
|
|
Operating Temperature |
-20 to 50? |
|
|
Storage |
10000 pcs |
20000 pcs |
|
Interface |
USB |
|
|
Certifications |
ISO, CIE |
|
|
Batteries |
Li-ion battery |
|
|
Dimension |
184x77x105 mm |
|
|
Weight |
600 g |
|
|
Electrical Requirement |
|
|
|
Catalogue No. |
1502005-04 |
1502010-04 |
