Availability : 2 - 3 weeks

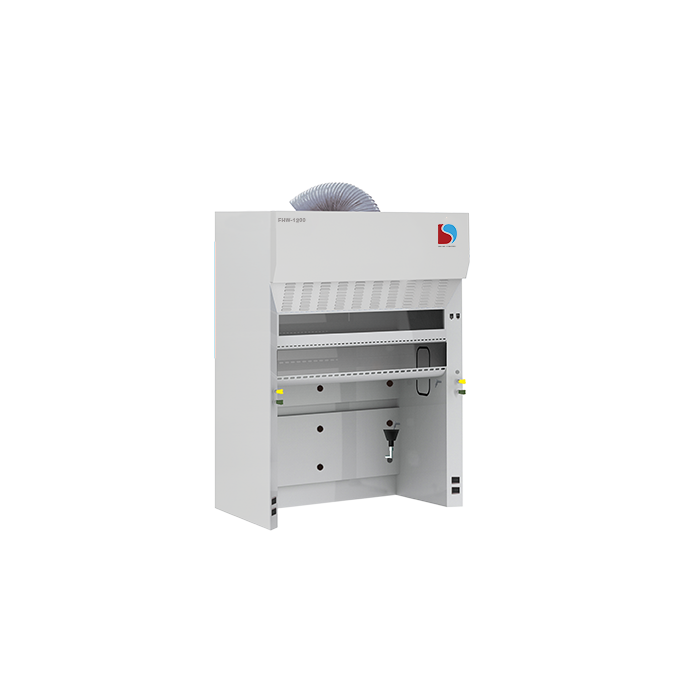

The FHW-1500 Walk-in fume hood supply exhaust system for large laboratory instruments and equipment. Meanwhile, operators can walk into the fume hood to operate the equipment conveniently and directly.
Operators are available to walk into the fume hood to operator if needed.
Large room exhaust system, suitable for large laboratory instruments and equipment.
| In Stock | In Stock |
|---|---|
| Fluorescent Lamp | 40W*2 |
| UV Lamp | - |
| Max. Opening | 1150mm |
| power | 500W |
| capacity | - |
| model | FHW-1500 |
|
Model |
FHW-1000 |
FHW-1200 |
FHW-1500 |
||||
|
External Size (W*D*H) mm |
1200*850*2200mm |
1500*850*2200mm |
1800*850*2200mm |
||||
|
Internal Size (W*D*H) mm |
1000*650*1500mm |
1300*650*1500mm |
1600*650*1500mm |
||||
|
Internal Size (W*D*H) mm |
975 |
1267 |
1560 |
||||
|
Max Opening (mm) |
1150mm |
||||||
|
Exhaust Airflow Volume |
1150m3/h |
1500m3/h |
1850m3/h |
||||
|
Inflow Air Velocity |
≥0.4m/s |
||||||
|
Noise |
62dB |
||||||
|
Vibration |
XYZ direct ≤4μm |
||||||
|
Illumination |
≥800Lux |
||||||
|
Fluorescent Lamp |
21W*2 |
28W*2 |
40W*2 |
||||
|
Power Supply |
220V±10%, 60/50Hz?110V±10%, 60Hz |
||||||
|
Consumption |
400W |
500W |
500W |
||||
|
Front Window |
Manual, Toughened glass., Anti UV |
||||||
|
Material
|
Exterior |
1.2mm cold-rolled steel with bacteria powder coating. |
|||||
|
Interior |
High grade melamine board with good acid and alkali resistance function |
||||||
|
Standard Accessories
|
Blower( External) ,Fluorescent lamp, Water tap, Gas tap, PP cup sink, Remote control water valve, Remote control gas valve, Waterproof sockets * 4, ?300mm PVC Duct |
||||||
|
Waterproof Sockets |
Total load of 4 waterproof sockets: ≤500W |
||||||
|
Package Dimensions (W*D*H) mm |
1410x1050x2430mm |
1710x1050x2430mm |
2010x1050x2430mm |
||||
|
Exhaust Blower |
970*810*580mm |
970*810*580mm |
970*810*580mm |
||||
|
Electrical Requirements |
110V |
220V |
110V |
220V |
110V |
220V |
|
|
Catalogue No. |
300250501 |
300250502 |
300251001 |
300251002 |
300251501 |
300251502 |
|
