Availability : 2 - 3 weeks

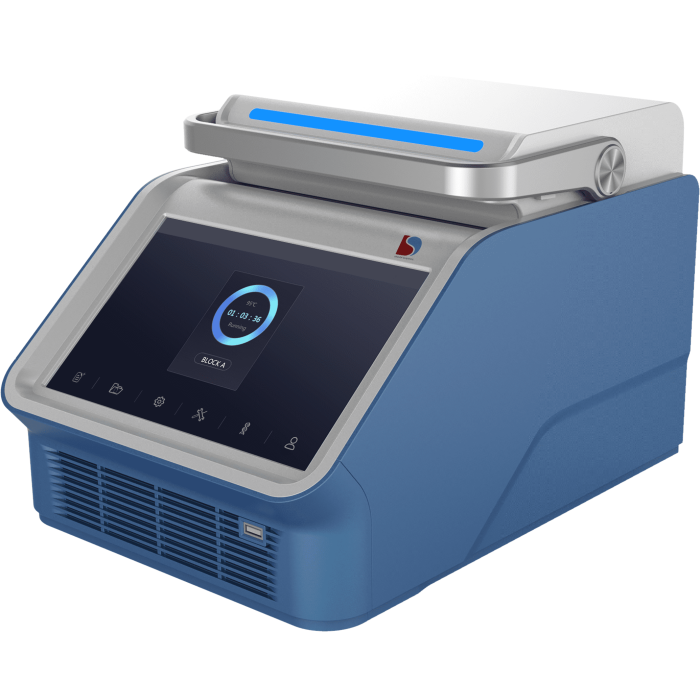

TheDenverAdvanced Thermal Cyclers TCP-5100 is designed with nonlinear gradient. Suitable for the denaturation, enzymes cutting, enzymes link and ELISA assay applications. Offer high heating and cooling rate with the Peltier design unit. Equipped with 11 standard programs for fast editing in particular programs.
Suitable for the denaturation, enzymes cutting, enzymes link and ELISA assay applications. Offer high heating and cooling rate with a ramping rate up to 7°C/sec. Equipped with 11 standard programs for fast editing in particular programs.
Features with Peltier design, large LCD touch display, reaction blocks, air ventilation, hot lid plate, cooling fins and handle. Accommodates wells including 96×0.2 ml, with the availability of tubes: 0.2 ml tube, 8 strips, 96 wells plate and this block are completely independently of each other and without interference.
| In Stock | In Stock |
|---|---|
| Apply Add To Quote | Yes |
| number_of_cycle | 100 |
| gradient_temp_range | 30 to 105�C |
| power | 600 W |
| resolution | 0.1? |
| temperature_range | 4 to 105�C |
| capacity | 96�0.2 ml |
| model | TCP-5100 |
|
Model |
TCP-5100 |
TCP-5200 |
TCP-5300 |
|||
|
Capacity |
96×0.2 ml |
6×16×0.2 ml |
96×0.2 ml |
|||
|
Display |
10.1-inch LCD |
|||||
|
Temperature Range |
4 to 105°C |
|||||
|
Number of Program |
20000+ USB FLASH |
|||||
|
Uniformity |
≤±0.2°C |
|||||
|
Accuracy |
≤±0.1°C |
|||||
|
Tube |
0.2 ml tube, 8 strips, 96 wells plate |
|||||
|
Display Resolution |
0.1°C |
|||||
|
Number of Cycle |
100 |
|||||
|
Number of Step |
30 |
|||||
|
Holding Temperature |
4°C |
|||||
|
Temperature Control |
Block/Tube |
|||||
|
Ramping Rate Adjustable |
0.1 to 5°C |
0.1 to 6°C |
0.1 to 7°C |
|||
|
Gradient Temperature Range |
30 to 105°C |
|||||
|
Gradient Type |
Nonlinear Gradient |
Dynamics Gradient |
2D Gradient |
|||
|
Gradient Spread |
1 to 42°C |
0.1 to 5°C |
Portrait: 1 to 30°C, Landscape: 1 to 24°C |
|||
|
Hot Lid Temperature |
30 to 115°C |
|||||
|
Connectivity |
USB2.0, WIFI |
|||||
|
Increase/Decrease in Temperature |
0.1 to 10°C |
|||||
|
Increase/Decrease in Time |
1 to 600 seconds |
|||||
|
Power consumption |
600 W |
600 W |
1000 W |
|||
|
Dimension |
385×270×255 mm |
|||||
|
Weight |
10 kg |
10 kg |
11 kg |
|||
|
Electrical Requirements |
100V/50Hz; |
240V/60Hz |
100V/50Hz; |
240V/60Hz |
100V/50Hz; |
240V/60Hz |
|
Catalogue No. |
620400501 |
620400502 |
620401001 |
620401002 |
620401501 |
620401502 |
|
