XRF Spectrometers & Analyzers
Biolab XRF Spectrometers and Analyzers provide rapid, accurate and non-destructive elemental analysis for laboratory, industrial and field applications. Using advanced Energy Dispersive X-ray Fluorescence (EDXRF) technology, these XRF analyzers identify and quantify elements by measuring the characteristic fluorescent X-rays emitted from a sample when excited by an X-ray source.
Designed for fast qualitative and quantitative analysis, Biolab XRF spectrometers enable reliable multi-element detection with minimal sample preparation. Depe
Biolab XRF Spectrometers and Analyzers provide rapid, accurate and non-destructive elemental analysis for laboratory, industrial and field applications. Using advanced Energy Dispersive X-ray Fluorescence (EDXRF) technology, these XRF analyzers identify and quantify elements by measuring the characteristic fluorescent X-rays emitted from a sample when excited by an X-ray source.
Designed for fast qualitative and quantitative analysis, Biolab XRF spectrometers enable reliable multi-element detection with minimal sample preparation. Depending on the model and configuration, they are suitable for elemental analysis, alloy identification and verification, precious metal analysis, coating thickness measurement, mineral and geological testing, heavy-metal detection, petroleum analysis, RoHS screening and material quality control.

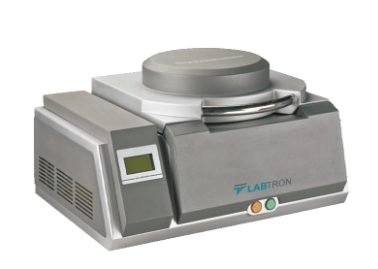

The Biolab range includes benchtop XRF spectrometers, portable XRF analyzers and handheld XRF analyzers, providing flexible solutions for laboratory testing, production-line quality control and on-site material identification. Advanced detector technology, optimized X-ray excitation systems and intelligent analytical software support precise, repeatable and efficient elemental measurements across a wide variety of sample types.
Biolab XRF Spectrometers and Analyzers are suitable for applications across metallurgy, mining and geology, precious metals and jewellery, electronics, environmental testing, petroleum and petrochemicals, cement and construction materials, recycling, manufacturing, research and quality-control laboratories.
With rapid measurement, non-destructive testing, minimal sample preparation, multi-element detection and high repeatability, Biolab XRF analyzers provide an efficient solution for routine elemental analysis, material verification and quality assurance.
Key Features:
• Rapid and non-destructive elemental analysis
• Qualitative and quantitative multi-element detection
• Minimal sample preparation
• High accuracy and measurement repeatability
• Benchtop, portable and handheld XRF configurations
• Suitable for metals, alloys, minerals, precious metals and other materials
• User-friendly analytical software
• Suitable for laboratory, industrial and field applications
The Biolab BXA-5000 Handheld XRF Analyzer is a high-performance portable X-ray fluorescence analyzer designed for rapid, accurate and non-destructive elemental analysis, alloy identification and Positive Material Identification (PMI). Equipped with an advanced SDD detector, miniature X-ray tube and digital multi-channel processing technology, the BXA-5000 provides fast material identification and quantitative elemental analysis for industrial, laboratory and field applications.
| Model | BXA-5000 |
| Brand | Biolab |
| Instrument Type | Handheld XRF Analyzer |
| Technology | Energy Dispersive X-ray Fluorescence (EDXRF) |
| Analysis Method | Non-destructive elemental and alloy analysis |
| Elemental Range | Mg (12) to U (92) |
| Detector | Silicon Drift Detector (SDD) |
| Energy Resolution | ≤141 eV @ Mn Kα, 100 kcps |
| X-ray Source | Miniature integrated high-voltage X-ray tube |
| Maximum X-ray Tube Power | 4 W |
| Maximum Tube Voltage | 50 kV |
| Maximum Tube Current | 0.2 mA |
| Spectral Counting Rate | Up to 500 kcps |
| Display | 5-inch high-definition touchscreen |
| Camera | Integrated high-definition camera |
| Collimator / Filter | Multi-combination collimator and filter system, up to 12 groups |
| Light Element Analysis | Detection from Mg without helium |
| Alloy Library | More than 500 alloy grades |
| Analysis Speed | Rapid analysis; application dependent |
| Sample Preparation | Minimal or generally not required for direct surface analysis |
| Battery | High-capacity rechargeable lithium battery |
| Battery Capacity | Up to 27,000 mAh, configuration dependent |
| Data Processing | Digital multi-channel signal processing |
| Operating Modes | User Mode and Expert Mode |
| Safety | Multiple X-ray safety protection and interlock systems |
| Construction | Sealed, portable handheld design |
| Applications | PMI, Alloy Identification, Metals, Precious Metals, Recycling and Quality Control |
| Catalog Number | BL-264847 |

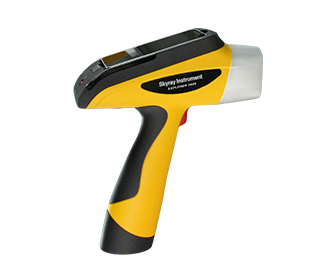

The Biolab Portable XRF Analyzer is a compact, high-performance X-ray fluorescence system designed for rapid, accurate and non-destructive elemental analysis in laboratory, industrial and on-site environments. Using Energy Dispersive X-ray Fluorescence (EDXRF) technology, the analyzer enables qualitative and quantitative determination of multiple elements with minimal sample preparation.
Combining laboratory-grade analytical capability with a portable design, the system is suitable for users who require elemental testing at different locations without relying on a permanently installed laboratory instrument. Samples can be analyzed quickly for material composition, identification and quality control while maintaining a non-destructive testing workflow.
