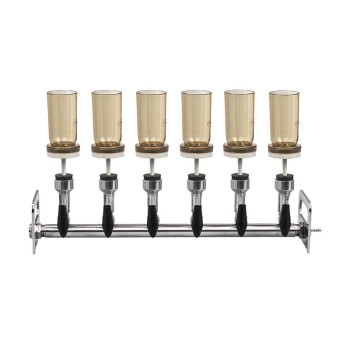

Multi-Place Vacuum Manifold FM-1000 Series

Multi-Place Vacuum Manifold IFM-1000 Series designed with a magnetic filter cup, funnel adaptors along with aluminum and long lasting stainless steel manifold, magnetic filter cup. We provide advanced Magnetic cup, one-handed vacuum filtration of liquids. The convenient capacities are 150 mL size allows for easy fit into small autoclaves and 300 ml, and 500 ml size is ideal for filtration of large samples. The magnets ensure a close-fitting, best sealing between the funnel cylinder and base, reducing the need for clamps.

Description

Specification

Technical

The magnetic and stainless steel funnels, the stainless steel funnels that can be flame sterilized
Build with patented spin-lock design
Quick, easy and safe to service, fast-assembly and disassembly
Requires electricity for operating
Large capacity in small foot print, exchangeable funnel adaptor design permits user to fit their desired funnel simply
Cost-effective high capacity system
Available capacity 150, 300 and 500 ml magnetic funnel

Model	IFM-1100	IFM-1200	IFM-1300	IFM-1400	IFM-1500	IFM-1600	IFM-1700	IFM-1800	IFM-1900
Type	3 Branches						6 Branches
Capacity	150 ml	300 ml	500 ml	150 ml	300 ml	500 ml	150 ml	300 ml	500 ml
Manifold Material	Aluminium			Stainless Steel			Stainless Steel
Funnel Material	Magnetic
Pore Size	47/50 mm
Filtration Area	9.6 cm2
Outlet Area	8 mm
Product Available	Manifold +funnel
Dimension	500×150×300 mm					500×150×330 mm	800×150×300 mm	800×150×300 mm	800×150×330 mm
Catalogue No.	2603005-04	2603010-04	2603015-04	2603020-04	2603025-04	2603030-04	2603035-04	2603040-04	2603045-04

Model	IFM-1100	IFM-1200	IFM-1300	IFM-1400	IFM-1500	IFM-1600	IFM-1700	IFM-1800	IFM-1900
Type	3 Branches						6 Branches
Capacity	150 ml	300 ml	500 ml	150 ml	300 ml	500 ml	150 ml	300 ml	500 ml
Manifold Material	Aluminium			Stainless Steel			Stainless Steel
Funnel Material	Magnetic
Pore Size	47/50 mm
Filtration Area	9.6 cm2
Outlet Area	8 mm
Product Available	Manifold +funnel
Dimension	500×150×300 mm					500×150×330 mm	800×150×300 mm	800×150×300 mm	800×150×330 mm
Catalogue No.	2603005-04	2603010-04	2603015-04	2603020-04	2603025-04	2603030-04	2603035-04	2603040-04	2603045-04
