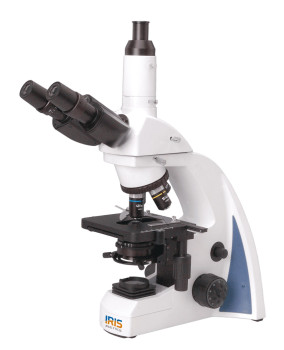

Research Microscope IMB-4300 Series is ideal for biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers. 1W S-LED Illumination with consistent color temperature, achromatic objective to ensure high image flatness across the field, single lens and ABBE Condenser with iris diaphragm and backward quadruple revolving nosepiece. This series of microscopes allow handlers to remain relaxed during long periods of routine microscopy observations. The microscope frame adapts the handler’s hands and the location of the control knobs maximizes ergonomics to recover work efficiency. Fast and rapid set a specimen with one hand while adjusting the focus and operating the stage with the other hand with slight movement. The binocular, trinocular viewing head has Infinite Semi-plan Achromatic 4x, 10x, 40x, 100 x objectives and each eye tube has interpupillary adjustment. Designed with blue, yellow and green filters. Features with backward quadruple revolving nosepiece holds multiple lenses, and found between the eyepiece and the stage allowing the user to turn it to achieve various levels of magnification. Though the exact level of magnification may vary with different models, most microscopes provide a low power lens with about 5X magnification and a high power lens with about 100X magnification. Featured with chromatic condenser Abbe NA 1.25 with sliding-in centerable condensers  that are concentrates and controls the light that passes through the specimen prior to entering the objective with modern cameras use a type of adjustable diaphragm known as an iris diaphragm which can reduce the amount light that hits a detector by decreasing the aperture and Filter.

• Infinite semi-plan achromatic objective
• Coaxial coarse and fine adjustment, fine division of length  0.002 mm, coarse stroke of length  37.7 mm/rotation, fine stroke 0.2 mm/ rotation, moving range of length  20 mm
• Offer stages that are designed to move small sample slides or entire microscopes including plain Mechanical stage to facilitates sample observations of length 145×140 mm, travel range of length 76×52 mm, scale: 0.1 mm with 2 slide holder along with optional: reckless(integrated) stage of length 140×135mm, travel range of length 75×35 mm, scale: 0.1 mm with 2 slide holder
• Mirror and 1W-S LED Illuminator light source
• Different filters including Blue, Green, and Yellow filters as an optional accessories
• Excellent wide field technology
• Binocular 30° inclined and a 360° rotatable head interpupilary distance 48 to 75 mm and trinocular 30° inclined and a 360° rotatable head interpupilary distance 48 to 75 mm
• Small foot print and light weight
• Easy operating with ergonomic design
• Excellent image quality with infinite optical system
• Kohler Illumination 6V/20W Halogen lamp as an optional accessories
• Accessories 3.0MP digital camera with Image 9.0 Software
• Optional accessories to realize Dark Field Attachment, Phase Contrast Kit, YX-2 Epi-fluorescent Attachment, FL-LED Epi-fluorescent Attachment

Sample Image
