Category Image Chest Type Shaking Incubator
Chest Type Shaking Incubator
Categories
Chest Type Shaking Incubator

Chest Type Shaking Incubator

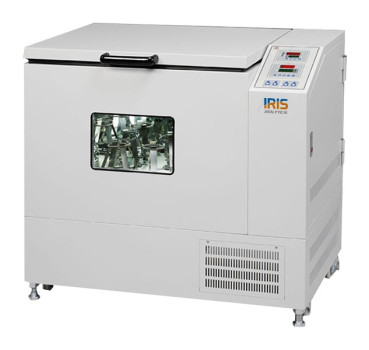

Iris CS-1000 Series Chest Type Incubator Shakers include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. Our laboratory shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.

Description
Specification
Technical

Iris CS-1000 Series Chest Type Incubator Shakers include intuitive controls with a digital display, a robust construction in a compact, space-saving design and smooth running conditions with variable speeds. Our laboratory shakers allow for safe, efficient and easy-to-use operation while reproducing accurate, controlled speeds with every use.

The CS-1000 incubator shakers are very robust and durable with all stainless steel interiors. Highly efficient insulation guarantees homogenous temperature dispersion as well as reproducible cultivation results. CS-1000 series incubator shakers are suitable for applications in modern laboratories, research centres and production facilities.

  • Inside material is SUS304 and outside body is powder painting
  • Screen-touch panel
  • Install light to view inside clearly
  • The compressor will be delayed to start working if power cut and with timer for defrost. Using environmental protection cold-media R134a.
  • With safety switch to stop shaking when opening door
  • Three-point bearing transmission is adopted suitable for heavy loads and continuous duty.
  • Transparent glass observation window.
  • Uses brushless AC motor for long durability and stable performance of the shaking system.
  • Overheat and over low protector, built-in circulating fan for temperature stability.



Model

CS-1510D

CS-1510RD

CS-1530D

CS-1530RD
Range

Ambient+5℃~70℃

0℃~70℃

Ambient+5℃~70℃

0℃~70℃
Accuracy

±0.1℃
Control

PID temperature control
Display

LED digital display

Shaking Speed

20~250 r.p.m

Shaking Width

50 mm

Timer

999 h / 999 min / 999 sec

Heater

1200 W

Illumination

Fluorescent lamp 20W

Refrigerator

N/A

1/4 HP

N/A

1/3 HP

Volume

205 L

205 L

381 L

381 L

Shaking Plate

600 x 480 mm

960 x 600 mm

Inside Dimension (WxDxH) mm

680 x 560 x 540 mm

1040 x 680 x 540 mm

Outside Dimension (WxDxH) mm

1010 x 640 x 870 mm

1370 x 760 x 870 mm

Net Weight

160kg

200kg

270kg

300kg

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

54045051

54045052

54045101

54045102

54045151

54045152

54045201

54045202

Model

CS-1510D

CS-1510RD

CS-1530D

CS-1530RD
Range

Ambient+5℃~70℃

0℃~70℃

Ambient+5℃~70℃

0℃~70℃
Accuracy

±0.1℃
Control

PID temperature control
Display

LED digital display

Shaking Speed

20~250 r.p.m

Shaking Width

50 mm

Timer

999 h / 999 min / 999 sec

Heater

1200 W

Illumination

Fluorescent lamp 20W

Refrigerator

N/A

1/4 HP

N/A

1/3 HP

Volume

205 L

205 L

381 L

381 L

Shaking Plate

600 x 480 mm

960 x 600 mm

Inside Dimension (WxDxH) mm

680 x 560 x 540 mm

1040 x 680 x 540 mm

Outside Dimension (WxDxH) mm

1010 x 640 x 870 mm

1370 x 760 x 870 mm

Net Weight

160kg

200kg

270kg

300kg

Electrical Requirements

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

110V/60Hz

220V/50Hz

Catalogue No.

54045051

54045052

54045101

54045102

54045151

54045152

54045201

54045202
