Availability : 2 - 3 weeks

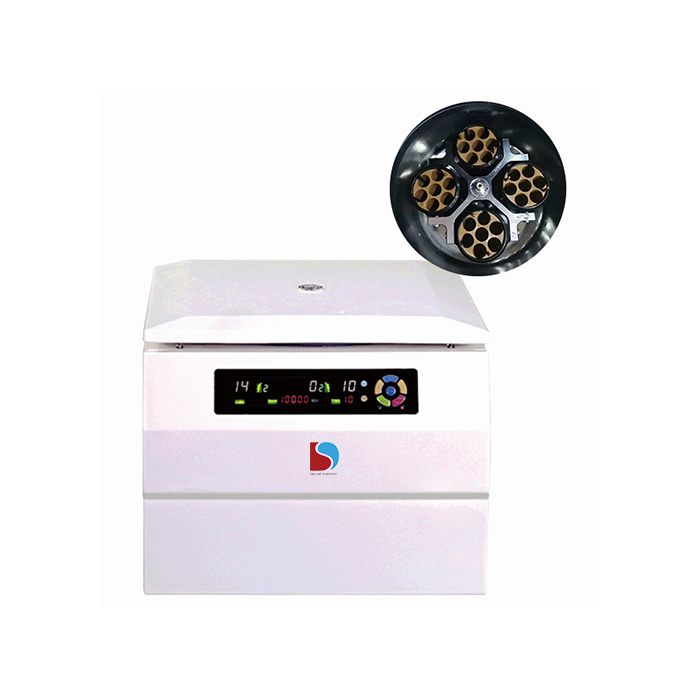

Benchtop High Speed Centrifuge BHC-4700 small footprint and compact centrifuge of capacity 4×750ml with maximum speed ranging 21000 rpm.
Features with digital LCD/LED screen to show parameters including running time, speed, RCF. Available with 10 profiles for acceleration and for deceleration with high efficiency.
For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 15 groups of programming space and accommodates angle rotor, Swing Rotor, Enzyme labelled plate rotor for 2×2×48 wells, Bucket, and PCR tubes.
| speed | 21000 rpm |
|---|---|
| maximum_temperature | - |
| power | 750 W |
| capacity | 4�750ml |
| model | BHC-4700 |
|
Model |
BHC-4100 |
BHC-4300 |
BHC-4500 |
BHC-4700 |
|
Capacity |
6×50ml |
4×100ml |
4×100ml |
4×750ml |
|
Max RCF |
18360×g |
23900×g |
26800×g |
30642×g |
|
Speed Range |
16500 rpm |
18500 rpm |
20000 rpm |
21000 rpm |
|
Noise |
≤ 65dB?A? |
< 60dB?A? |
≤ 65dB?A? |
|
|
Rotor Diameter |
250 mm |
320 mm |
320 mm |
420 mm |
|
Revolutions/min |
±20 rpm |
|||
|
Timer |
1 to 99 min |
|||
|
Power Consumption |
420 W |
500 W |
450 W |
750 W |
|
Dimension |
400×300×330 mm |
440×360×330 mm |
440×360×330 mm |
560×460×400 mm |
|
Packing Dimension |
410×310×360 mm |
545×430×395 mm |
510×460×460 mm |
640×530×470 mm |
|
Net Weight |
23 kg |
28 kg |
30 kg |
45 kg |
|
Gross Weight |
30 kg |
35 kg |
35 kg |
50 kg |
|
Electrical Requirement |
AC 220±22V 50/60Hz 5A |
AC 220±22V 50Hz 10A |
||
|
Catalogue No. |
1401550502 |
1401551002 |
1401551502 |
1401552002 |
