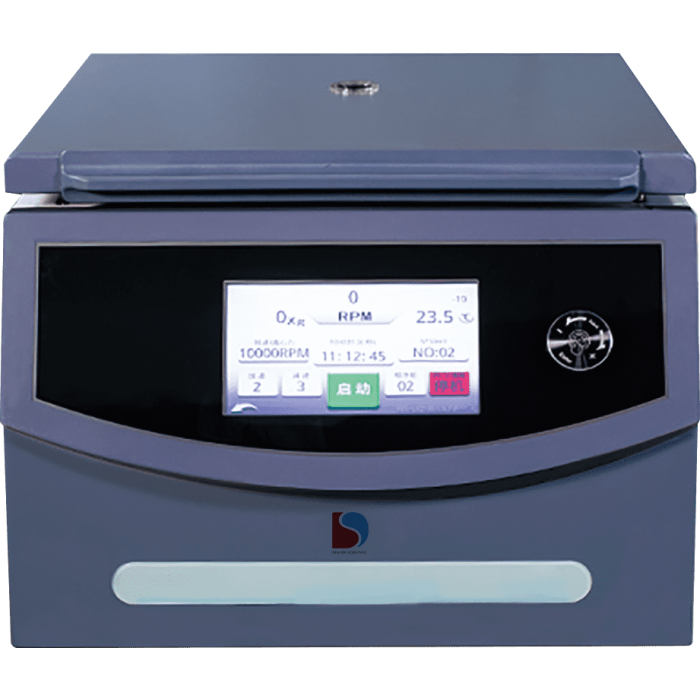

Benchtop High Speed Centrifuge BHC-5250

$5,048.00

Availability : 2 - 3 weeks

  • Description
  • Key Features
  • Technical
  • Downloads

Benchtop High Speed Centrifuge BHC-5250 is small footprint and compact centrifuge of capacity from 4×250ml with maximum speed ranging 20000 rpm. Designed with lock function, self-diagnostic function, and Automatic identification system for magnetic rotor, automatic matching of corresponding rotor program, preventing misoperation and ensuring centrifugal safety.

Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters. Available with 15 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function. Storages up to 99 program groups, 99 use records programming space and accommodates angle, swing out rotor, Elisa plate Rotor, and Enzyme plate; Square Hanging Basket. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications.

Mores Information
speed 20000 rpm
maximum_temperature -
power 750 W
capacity 4�250ml
model BHC-5250

Model

BHC-5050

BHC-5150

BHC-5250

BHC-5350

Capacity

12×5ml

4×100ml

4×250ml

4×750ml

Max RCF

20625×g

23110×g

30185×g

29780×g

Speed Range

16500 rpm

18500 rpm

20000 rpm

21000 rpm

Noise

≤62dB?A?

≤60dB?A)

;Rotor Diameter

200 mm

320 mm

380 mm

430 mm

Revolutions/min

±10 rpm

 Timer

1min to 99h, 59min, 59s

Power Consumption

500 W

550 W

750 W

1200 W

Dimension

335×270×245 mm

515×400×330 mm

540×430×395 mm

560×460×390 mm

Packing Dimension

412×347×332 mm

570×450×390 mm

627×502×442 mm

637×537×484 mm

Net Weight

15 kg

35 kg

45 kg

58 kg

Electrical Requirement

AC 220±22V 50Hz 15A

Catalogue No.

1401600502

1401601002

1401601502

1401602002
