Availability : 2 - 3 weeks

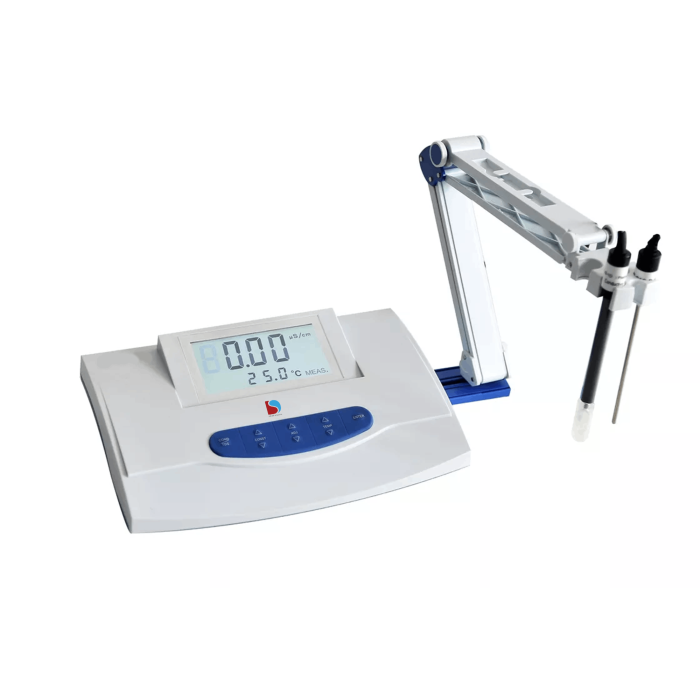

Compact Conductivity Meter CM-405 supply you with a conductivity meter. This concise-sized conductivity meter measures the conductivity with other parameters such as measuring resistivity, total dissolved solids (TDS), salinity and temperature.
Delivers high-quality conductivity measurements with a simple click of a button. It holds up the automatic recognition function of conductivity standard solution, kinds of GB buffer solution as default as well as multi-calibration. Build-in advanced frequency conversion to meet the full measurement range with one electrode.
| source | - |
|---|---|
| calibration | - |
| ion_concentration_accuracy | - |
| ion_concentration_range | - |
| ntu_range | - |
| sample_bottle | - |
| sample_capacity | - |
| do_accuracy | - |
| do_saturation_range | - |
| do_range | - |
| conductivity_accuracy | �0.5%(FS) |
| conductivity_resolution | - |
| conductivity_range | 0 ?s/cm to 100 mS/cm |
| temperature_compensation | Manual/Auto 0 to 40? |
| mv_accuracy | - |
| mv_resolution | - |
| mv_range | - |
| ph_accuracy | - |
| ph_resolution | - |
| ph_range | - |
| model_type | - |
| temperature_range | 0.0 to 99.9? |
| wavelength | - |
| model | CM-405 |
|
Model |
CM-405 |
CM-410 |
CM-415 |
CM-420 |
|
Parameter |
Conductivity/TDS/Temperature |
Conductivity |
Conductivity/Resistivity/TDS/Salinity/? |
Conductivity/Resistivity/TDS/Salinity/Temperature |
|
Display |
LCD |
7-inch touch screen |
LCD |
|
|
Conductivity Range |
0 μs/cm to 100 mS/cm |
0 μs/cm to 3000 mS/cm |
0 μs/cm to 199.9 mS/cm |
|
|
Conductivity Resolution |
- |
0.001 μs/cm |
0.001 μs/cm |
|
|
Conductivity Accuracy |
±0.5%(FS) |
- |
±0.5% FS |
±0.5% FS |
|
Resistivity Range |
- |
5.00Ω.cm to 100.0MΩ.cm |
5.00Ω.cm to 20MΩ.cm |
|
|
Resistivity Resolution |
- |
0.01 Ω.cm |
0.01 Ω.cm |
|
|
Resistivity Accuracy |
- |
±0.5% FS |
±0.5% FS |
|
|
Temperature Range |
0.0 to 99.9? |
- |
-5.0 to 135.0? |
-5.0 to 110.0? |
|
Temperature Resolution |
- |
0.1? |
0.1? |
|
|
Temperature Accuracy |
±0.3? ±1 bit |
- |
±0.1? |
±0.2? |
|
TDS Range |
0 to 2000 mg/L |
- |
0 mg/L to 1000 g/L |
0 mg/L to 100 g/L |
|
TDS Resolution |
- |
0.001 mg/L |
0.001 mg/L |
|
|
TDS Accuracy |
±1.0%(FS) |
- |
±0.5% FS |
±0.5% FS |
|
Salinity Range |
- |
0 to 8 % |
||
|
Salinity Resolution |
- |
0.01% |
0.01% |
|
|
Salinity Accuracy |
- |
±0.1 % |
±0.1 % |
|
|
Temperature Compensation |
Manual/Auto 0 to 40? |
Manual 15 to 35? |
- |
|
|
Calibration |
- |
5 Points |
2 Points |
|
|
Certification |
CE |
|||
|
Storage |
- |
1000 set |
600 set |
|
|
Interface |
|
|
RS232, USB |
USB |
|
Dimensions |
300×220×90 mm |
280x280x130 mm |
340x270x280 mm |
|
|
Weight |
1.3 kg |
2.5 kg |
||
|
Electrical Requirement |
AC±22 220V, ±1, 50Hz |
Universal power adaptor DC 24V/3A |
Universal power adaptor DC 9V/800mA |
|
|
Catalogue No. |
7101055-02 |
7101060-02 |
7101065-04 |
7101070-04 |
