Availability : 2 - 3 weeks

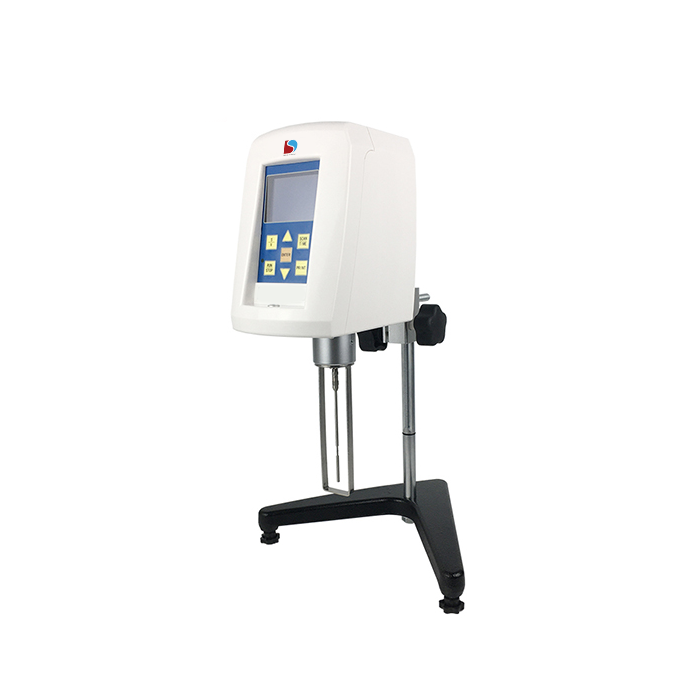

Digital Viscometer VM-120 ideal for the application in pharmaceutical, petroleum, food & beverage industries, pasteurization plant, cosmetic and other personal-care product also industries dealing with paint, rubber, latex, silicon, ink, glue, polymer etc. works on basic principle of fluids internal shear stress and is independent of gravity.
Designed with stepping motor, alarm feature and easy linear calibration giving accurate and precise output with respect to time. Design with digital display, stainless steel spindle, with wide measuring range up to 100000 to 2000000 mPa.s, and rotor speed range from 6 to 60 rpm along with 4 speed steps. Available in LV spindles from 0 to 4, along with PT-100 temperature probe with ±0.1% accuracy and ±0.5% repeatability. Compatible with audio system to read out parameters and convenient printing option.
| speed | 0.3,�0.6,�1.5,�3�,6,�12,�30,�60 rpm |
|---|---|
| reproducibility | �0.5% |
| measurement_range | 1 to 2000000 mPa.s |
| temperature_range | - |
| model | VM-120 |
|
Model No. |
VM-110 |
VM-120 |
||
|
Measuring Range |
1 to 100000 mPa.s |
1 to 2000000 mPa.s |
||
|
Rotor Speed |
6, 2, 30, 60 rpm |
0.3, 0.6, 1.5, 3 ,6, 12, 30, 60 rpm |
||
|
Regulator Steps |
4 |
8 |
||
|
Spindles type |
LV |
|||
|
Spindle No. |
1,2,3,4 |
|||
|
Display |
Digital |
|||
|
Percent Accuracy |
±1.0% of range |
|||
|
Repeatability |
±0.5% |
|||
|
Supply |
|
|||
|
Electrical Requirement |
AC100V |
AC240V |
AC100V |
AC240V |
|
Catalogue No |
650050501 |
650050502 |
650051001 |
650051002 |
