Availability : 2 - 3 weeks

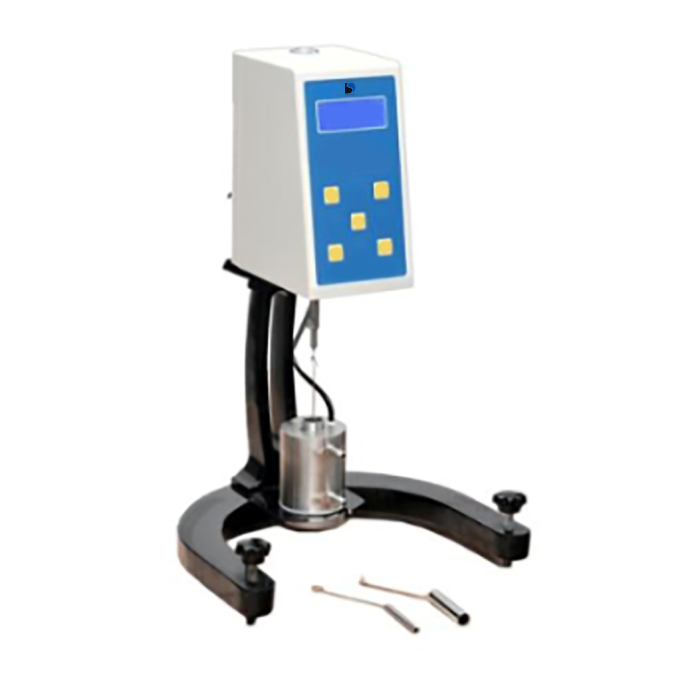

Digital Viscometer VM-240 especially designed for textile, paint, and petroleum, chemical industries majorly dealing with inks, oils, solvents, and non-Newtonian liquid.
Compatible with 7 types of rotor for measuring high, low, medium viscosity reading with multi-sampling feature saves time and gives efficient results.
Integrated with digital LCD display, newly design temperature flume. Crafted with stainless steel spindle, variety of rotors, it has temperature sensor PT-100 and alarm option when parameter exceeds the range, it is suitable for variable measuring range with gear drive rotor.
| speed | 0.1 to 750 rpm |
|---|---|
| reproducibility | - |
| measurement_range | 1 to 7500 cP |
| temperature_range | -50 �C to 200 �C |
| model | VM-240 |
|
Model No. |
VM-210 |
VM-220 |
VM-230 |
VM-240 |
||||||
|
Measuring Range |
1 to 100 cP |
1 to 150 Cp |
1 to 750 cP |
1 to 7500 cP |
||||||
|
No of Rotor |
7 |
|||||||||
|
Rotor |
E, F, G rotor for medium, high viscosity and A, B, C, D rotor for low viscosity. |
|||||||||
|
Rotor Speed |
7.5, 75, 750 rpm |
5, 7.5, 10, 50, 75, 100, 200, 300, 400, 500, 600, 700, 750, 800 rpm |
1 to 800 rpm |
0.1 to 750 rpm |
||||||
|
Rotor Type |
gear drive |
no gear drive |
||||||||
|
Regulator Step |
3 |
14 |
10 RPM |
Continuously Variable Transmission |
||||||
|
Spindles type |
LV |
|||||||||
|
Spindle No. |
1,2,3,4 |
|||||||||
|
Probe |
PT-100 |
|||||||||
|
Probe Range |
-50 °C to 200 °C |
|||||||||
|
Probe Accuracy |
+ 0.1 °C |
|||||||||
|
Display |
Digital LCD |
|||||||||
|
Percent Accuracy |
+ 1% |
|||||||||
|
Reproducibility |
0.50% |
|||||||||
|
Electrical Supply |
AC 110V/50Hz |
AC220V/60Hz |
AC 110V/50Hz |
AC220V/60Hz |
AC 110V/50Hz |
AC220V/60Hz |
AC 110V/50Hz |
AC220V/60Hz |
||
|
Catalogue No |
650100501 |
650100502 |
650101001 |
650101002 |
650101501 |
650101502 |
650102001 |
650102002 |
||
