Availability : 2 - 3 weeks

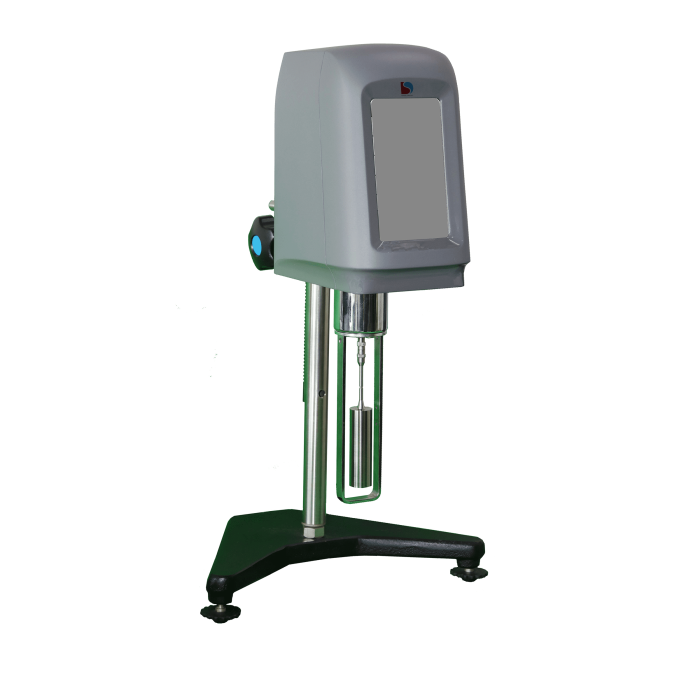

Digital Viscometer VM-320 suitable for the application in pharmaceutical, petroleum, food & beverage industries, pasteurization plant, cosmetic and other personal-care product also industries dealing with paint, rubber, latex, silicon, ink, glue, polymer etc. works on basic principle of fluids internal shear stress and is independent of gravity.
This model come with advanced touch screen with other useful accessories including stepping motor, alarm system, newly design axle with brushless spindles provide smooth operation and easy linear calibration providing high accuracy and precision.
| speed | 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
|---|---|
| reproducibility | �0.5% |
| measurement_range | 1 to 2000000 mPa.s |
| temperature_range | 0 to 100 �C |
| model | VM-320 |
|
Model No. |
VM-310 |
VM-320 |
|||
|
Measuring Range |
1 to 100000 mPa.s |
1 to 2000000 mPa.s |
|||
|
Rotor Speed |
6, 12, 30, 60 rpm |
0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm |
|||
|
Regulator Steps |
4 |
8 |
|||
|
Spindles Type |
LV |
||||
|
Spindle No. |
1,2,3,4 |
||||
|
Display |
5-inch LCD, Touch screen |
||||
|
Probe |
RTD |
||||
|
Temperature Range |
0 to 100 °C |
||||
|
Percent Accuracy |
±1.0% of range |
||||
|
Repeatability |
±0.5% |
||||
|
Electrical Requirement |
AC100V |
AC240V |
AC100V |
AC240V |
|
|
Catalogue No |
650150501 |
650150502 |
650151001 |
650151002 |
|
