Availability : 2 - 3 weeks

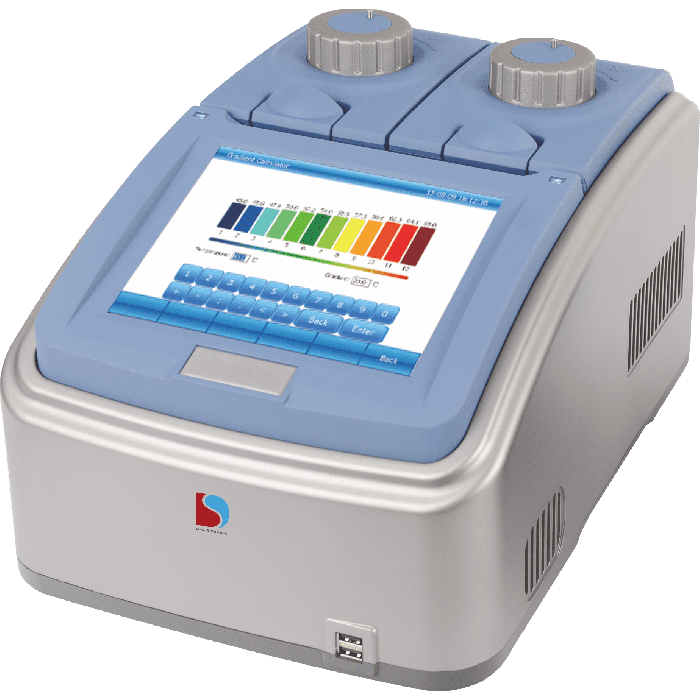

Dual Block Thermal Cyclers TCM-4025D has been used in PCR applications in research and development, food science, pharmaceuticals, life science, animal diagnostics, and analytical laboratories. Features with customized Marlow Peltier heating units and form 4 circuits to control 4 temperature zones with vibrant touch LCD display and maximum ramping rate 5 ?/s.
Dual Block Thermal Cyclers TCM-4025D accommodates 60×0.5 ml, and In-situ plate, this block is completely independently of each other and without interference Fabricated with anodizing technology that have prompts heating conducting and adequate corrosion resistance property.
| number_of_cycle | 100 |
|---|---|
| gradient_temp_range | - |
| power | - |
| resolution | ? � 0.1? |
| temperature_range | 0 to 100? |
| capacity | 60�0.5 ml |
| model | TCM-4025D |
|
Model |
TCM-4005D |
TCM-4010D |
TCM-4015D |
TCM-4020D |
TCM-4025D |
TCM-4030D |
TCM-4035D |
TCM-4040D |
TCM-4045D |
TCM-4050D |
||||||
|
Capacity |
96×0.2 ml |
60×0.5 ml |
2×48×0.2 ml |
48×0.2 ml + 30×0.5 ml |
384 well, In-situ Plate |
|||||||||||
|
Display |
LCD, 8 inch, 800×600 pixels |
|||||||||||||||
|
Temperature Range |
0 to 100? |
|||||||||||||||
|
Number of Program |
10000 +(USB FLASH) |
|||||||||||||||
|
Uniformity |
≤ ± 0.2? |
|||||||||||||||
|
Accuracy |
≤ ± 0.1? |
|||||||||||||||
|
Resolution |
0.1? |
|||||||||||||||
|
Number of Cycle |
100 |
|||||||||||||||
|
Number of Step |
30 |
|||||||||||||||
|
Holding Temperature |
4? |
|||||||||||||||
|
Temperature Control |
Block\Tube |
|||||||||||||||
|
Heating Rate |
5?/s |
|||||||||||||||
|
Cooling Rate |
4?/s |
|||||||||||||||
|
Ramping Rate Adjustable |
0.1 to 5? |
|||||||||||||||
|
Gradient Temp. Range |
- |
30 to 100? |
- |
30 to 100? |
- |
30 to 100? |
- |
30 to 100? |
- |
30 to 100? |
||||||
|
Gradient Uniformity |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
||||||
|
Gradient Accuracy |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
- |
≤±0.2? |
||||||
|
Gradient Spread |
- |
1 to 30? |
- |
1 to 30? |
- |
1 to 30? |
- |
1 to 30? |
- |
1 to 30? |
||||||
|
Hot Lid Height Adjustable |
Step less Adjustable |
|||||||||||||||
|
Hot Lid Temperature |
30 to 110? |
|||||||||||||||
|
Connectivity |
USB 2.0, LAN |
|||||||||||||||
|
Temp Increment/Decrement |
0.1 to 10.0? |
|||||||||||||||
|
Increase/Decrease in Time |
1 Sec to 600 Sec |
|||||||||||||||
|
Power consumption |
600 W |
|||||||||||||||
|
Overall Dimensions |
390×270×255 mm |
|||||||||||||||
|
Net Weight |
9 kg |
|||||||||||||||
|
Electrical Requirements |
264 V AC , 47 to 63 Hz |
|||||||||||||||
|
Catalogue No. |
620300503 |
620301003 |
620301503 |
620302003 |
620302503 |
620303003 |
620303503 |
620304003 |
620304503 |
620305003 |
||||||
|
