Availability : 2 - 3 weeks

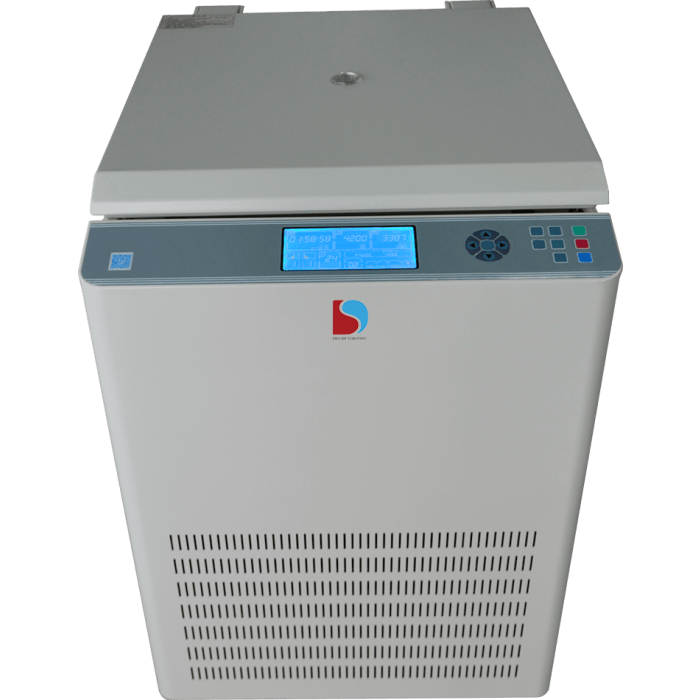

Floor Standing High Speed Refrigerated Centrifuge FHRC-1100 comes with double electronic door lock and high quality hydraulic rod, food-grade integrated silicone sealing ring features. Suitable for clinical medicine, biochemistry, genetic engineering, immunological applications. Features with touch screen with multi-functional knob combination parameters.
Available with 9 profiles for acceleration and for deceleration with high efficiency. For safety we introduced electronic door lock function and, imbalance detection, over-speed protection, inching function, short-spin function.
The FHRC-1100 is sealed and can function at high RPM owing to the ability to reduce the heat produced by higher rotation speeds worked under temperature range -20? to 40? and accommodates angle rotor.
| speed | 18000 rpm |
|---|---|
| maximum_temperature | -20�C to +40�C |
| power | - |
| capacity | 24�0.2ml /0.5ml /2ml, 12x2ml /5ml/7ml/10ml/2.2ml, 48x0.5ml, 36�1.5ml/2ml, 8�4�0.2ml(PCR special rotor?, 8x15ml, 6x50ml/100ml. |
| model | FHRC-1100 |
|
Model |
FHRC-1100 |
FHRC-1200 |
|
Shaking Speed |
18000 rpm |
23000 rpm |
|
RCF Speed |
23846×g |
33097×g |
|
Capacity |
24×0.2ml /0.5ml /2ml, 12x2ml /5ml/7ml/10ml/2.2ml, 48x0.5ml, 36×1.5ml/2ml, 8×4×0.2ml(PCR special rotor?, 8x15ml, 6x50ml/100ml. |
32x0.2ml, 24×0.2ml /0.5ml /2ml, 12x2ml /5ml/7ml/10ml/2.2ml, 48x0.5ml; 36×1.5ml/2ml, 8×4×0.2ml(PCR special rotor, 8x15ml,6x50ml/100ml/250ml, 96holes×4?ELISA Plate? |
|
Temperature Range |
-20°C to +40°C |
|
|
Temperature accuracy |
±2°C |
|
|
Revolution/rpm |
±100 rpm |
|
|
Materials |
Stainless steel centrifugal chamber |
|
|
Display |
LCD |
|
|
Optional Rotor/ Adaptor |
12 angle rotor and 1 horizontal rotor |
15 angle rotor and 1 horizontal rotor |
|
Time Range |
1 min to 99 h 99 min 59 s |
|
|
Power Consumption |
2.0 KVA |
2.2 KVA |
|
Dimension |
660x500x855 mm |
|
|
Weight |
69 kg |
|
|
Electrical Requirement |
AC 220V 50Hz |
|
|
Catalogue No. |
1402850502 |
1402851002 |
