Availability : 2 - 3 weeks

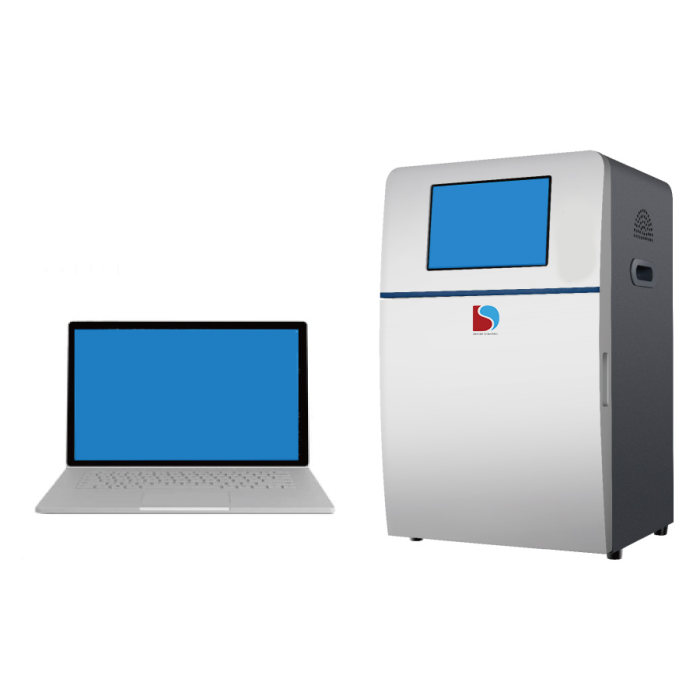

Gel Documentation System GS-2020 covers chemiluminescence and multiplexing fluorescence applications. Ideal for reproducible and comparable quantification data. Add a UV transmission, UV+BLUE light transmission, UV+BLUE+White light transmission, and UV+BLUE+White transmission and RGB reflection.
The scientific CCD camera is controllable from PC., operation mode convertor, multi fluorescence mode, ultra-slim transilluminator for blue light and white light transmission, and UV transilluminator contain a non-lamp design for uniform transmission.
Applicable for blotting membrane such as western lightning, ECL, ECL plus, CDP star, super signal, CSPD, LumiGlo, Cy2, Cy3, Cy5, FITC, Alexa dyes, daylight dyes, ProQDiamond, ProQEmerald 300, ProQEmerald 488, IR Dye 680, etc.; protein inspection and Gel Inspection. The system is built for high performance and automation and features a next-generation, and compatible with 8 Sockets filter wheel. Build-in software for image enhancement, editing, and image analysis. Detect far weaker signal and offer higher sensitivity and wider linear range, human-computer interactive program.
| cooling_temperature | 25�C |
|---|---|
| filter_wheel | 8 sockets filter wheel |
| efficiency | - |
| camera | CCD camera |
| lens | F0.95 motorized ultrafast |
| design_type | - |
| intensity | - |
| UV Shield | - |
| filter_size | - |
| resolution | 6.05 MP, 2750�2200 |
| wavelength | - |
| model | GS-2020 |
|
Model |
GS-2010 |
GS-2020 |
GS-2030 |
|
Lens |
F0.8 motorized ultrafast |
F0.95 motorized ultrafast |
F0.8 motorized ultrafast |
|
Type |
- |
Embedded industry computer with touch screen |
|
|
Sensor |
12.49×9.99 mm CCD sensor |
||
|
Camera |
CCD camera |
||
|
Resolution |
6.05 MP, 2750×2200 |
||
|
Efficiency |
≥75% |
||
|
Pixel Size |
4.54×4.54 µm |
||
|
Pixel Density |
16 bit(65536 gray scale) |
||
|
Filter Wheel |
8 sockets filter wheel |
||
|
Cooling Temperature |
25°C |
||
|
Excitation Light |
UV Light Ex365, Blue Light Ex470, Green Light Ex530, Red Light Ex630, Near infrared Ex660, Near infrared Ex770 |
||
|
Filters |
Em460/30F, Em460/31F, Em460/32F, Em460/33F, Em460/34F, Em460/35F |
||
|
Internal Dimension |
430×380×690 mm |
||
|
External Dimension |
550×490×760 mm |
||
|
Weight |
33 kg |
||
|
Electrical Requirement |
|
||
|
Catalogue No. |
3403005-04 |
3403010-04 |
3403015-04 |
