Availability : 2 - 3 weeks

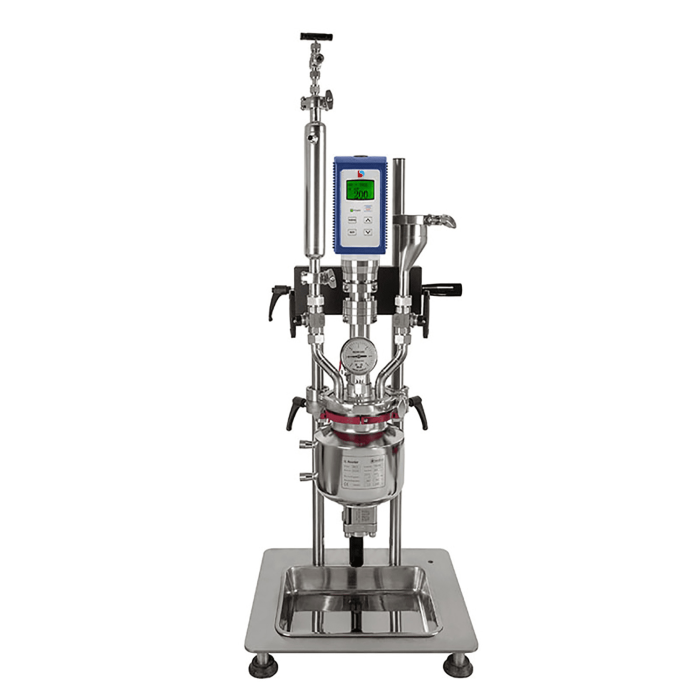

Large Scale Pressure Reactor PR-4700 allows excellent control of high-pressure reactions up to 100 bar. The system is ideal for universal experiment reactions, where elevated pressures are required. Automating your pressure reactions could not be easier.
We offer Overhead stirrer with magnetic clutch and stirrer drives of different performance classes. Constructed with SUS 316L stainless steel and sophisticated with or with bottom outlet and the reactor capacities 2000 ml. Options include the internal heating/cooling coil and thermocouple. We provide safety by setting 100 bar maximum pressure burst disc and maximum temperature cut-outs to ensure that your reaction does not fall outside suitable factors.
| reactor_dimension | 90x352 mm |
|---|---|
| pressure_range | 100 bar |
| material | SUS 316L |
| volume | 2,000 ml |
| temperature_range | 250? |
| model | PR-4900 |
|
Model |
PR-4300 |
PR-4500 |
PR-4700 |
PR-4900 |
|
Material |
SUS 316L |
|||
|
Reactor Volume |
300 ml |
500 ml |
1,000 ml |
2,000 ml |
|
Temperature Range |
300? |
250? |
300? |
250? |
|
Pressure Range |
100 bar |
|||
|
No. of Tube Connection |
8 mm |
|||
|
Ports (total) |
7 |
|||
|
Ports (free) |
3 |
|||
|
Reactor Dimension |
68x108 mm |
68x175 mm |
90x193 mm |
90x352 mm |
|
Reactor Weight |
4 kg |
6 kg |
11 kg |
16 kg |
|
Catalogue No. |
2302005-04 |
2302010-04 |
2302015-04 |
2302020-04 |
