Availability : 2 - 3 weeks

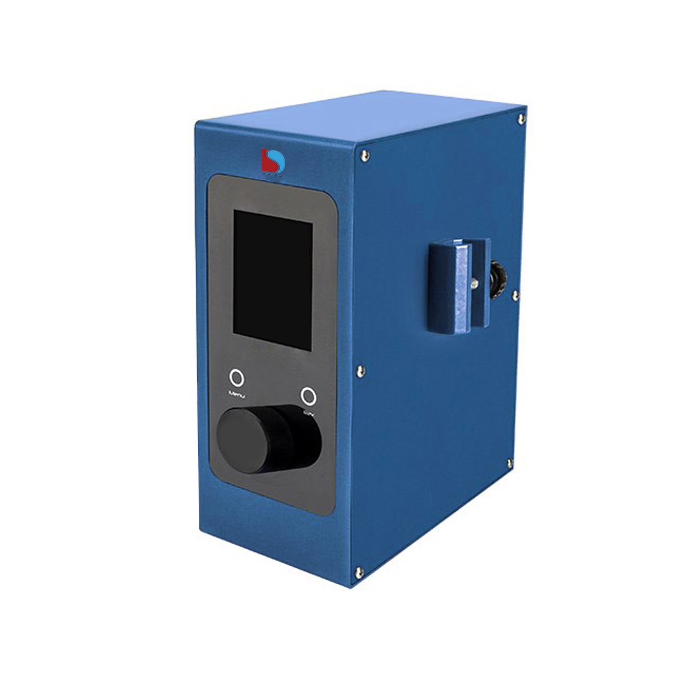

Overhead Stirrer OS-3300 suitable for reaction systems and other high torque / high speed applications. Designed with German made Brushless DC motor for high performance stirring processes.
| liquid_temperature_range | - |
|---|---|
| plate_temperature_range | - |
| maximum_viscosity | 200,000 cps |
| speed | 70-3000 |
| power | 450 W |
| capacity | 100 L |
| model | OS-3300 |
|
Model |
OS-3100 |
OS-3200 |
OS-3300 |
OS-3400 |
||||
|
Display / Control Mode |
LCD Display for Speed and Torque / On-Touch Control |
LCD Display for Speed and Torque / On-Touch Control |
LCD Display for Speed and Torque / On-Touch Control |
LCD Display for Speed and Torque / On-Touch Control |
||||
|
Speed Range (rpm) |
70-3000 |
20-800 |
70-3000 |
20-800 |
||||
|
Speed Accuracy (rpm) |
±1 |
±1 |
±1 |
±1 |
||||
|
Maximum Viscosity (cps) |
100,000 cps |
150,000 cps |
200,000 cps |
300,000 cps |
||||
|
Maximum Torque (N-cm) |
100 |
400 |
210 |
840 |
||||
|
Rated Torque (N-cm) |
47 |
188 |
116 |
464 |
||||
|
Maximum Capacity (L) |
50 |
50 |
100 |
100 |
||||
|
Input / Output Power (W) |
150 |
150 |
450 |
450 |
||||
|
Motor Dimensions (W × L × H in mm) |
157 x 65 x 65 |
216 x 65 x 65 |
165 x 75 x 75 |
225 x 75 x 75 |
||||
|
Motor Weight (kg) |
1.8 |
2.3 |
2.8 |
3.4 |
||||
|
Electrical Requirements |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
110V/60Hz |
220V/50Hz |
|
Catalogue No. |
600104001 |
600104002 |
600104501 |
600104502 |
600105001 |
600105002 |
600105501 |
600105501 |
