Availability : 2 - 3 weeks

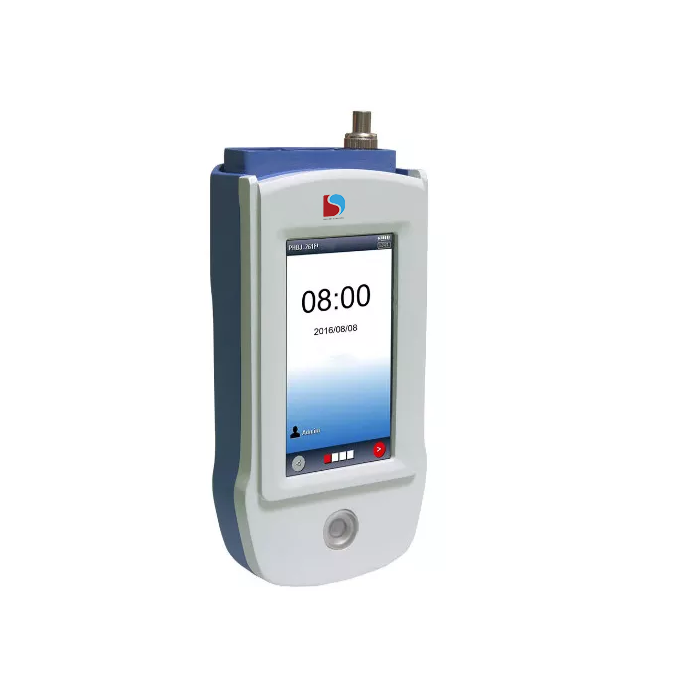

Portable Ion Meter PIM-100 used for measurements of specific ions in the water with use of an ion selective electrode. The available measuring parameters are including pX/Ion concentration/mV/ Temperature. The portable meters for ion concentration and temperature analysis are design to aids measure samples across a wide range of applications and deliver the features and functionality one look for in a laboratory any other field instrument with it easy features that maximize productivity and minimize training time. A backlit, graphic LCD provides easy to read resolution even in low areas and allows users to store up to 2000 sets that can be later transferred to a PC.
| source | - |
|---|---|
| calibration | 8 point |
| ion_concentration_accuracy | �0.3 % |
| ion_concentration_range | 1.000 e-9 to 9.999 e-9 |
| ntu_range | - |
| sample_bottle | - |
| sample_capacity | - |
| do_accuracy | - |
| do_saturation_range | - |
| do_range | - |
| conductivity_accuracy | - |
| conductivity_resolution | - |
| conductivity_range | - |
| temperature_compensation | - |
| mv_accuracy | - |
| mv_resolution | - |
| mv_range | - |
| ph_accuracy | - |
| ph_resolution | - |
| ph_range | - |
| model_type | - |
| temperature_range | -5 to 130? |
| wavelength | - |
| model | PIM-100 |
|
Model |
PIM-100 |
|
Display |
TFT Touch screen |
|
Ion Concentration Range |
1.000 e-9 to 9.999 e-9 |
|
Ion Concentration Accuracy |
±0.3 % |
|
pH/p X Range |
2 to 20 |
|
pH/ p X Accuracy |
±0.001 |
|
mV Range |
±2000.00 |
|
mV Accuracy |
±0.03 % / ±0.1 Mv |
|
Temperature Range |
-5 to 130? |
|
Temperature Accuracy |
±0.1? |
|
Calibration |
8 point |
|
Parameter |
pH /pX/mV(ORP)/RmV/Ion/ Temperature-7 |
|
Certification |
CE |
|
Storage |
2000 sets |
|
Interface |
MicroUSB |
|
Dimensions |
- |
|
Weight |
- |
|
Electrical Requirement |
Li-on (DC 3.8V) |
|
Catalogue No. |
7102505-04 |
