Availability : 2 - 3 weeks

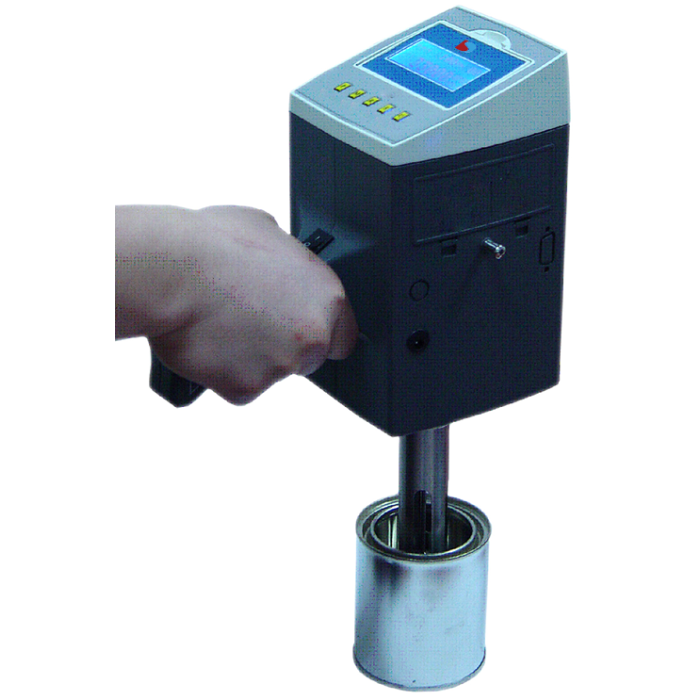

Portable Digital Viscometer PVM-1010 is highly rugged and portable microcomputer control viscosity meter device used to measure fluid viscosity in laboratory, outdoor and other industrial factory.
Used in the ink, glue, latex, solvent adhesive, polymer solution ,petroleum ,paint ,solvent ,cosmetic ,milk products, pharmaceutical ,juice and so on. Supplied with range of spindles with rotor speed from 60, 100, 150, 200 rpm with measuring range from 200 to 1,200,000 mPa.s with LCD touch screen display.
| speed | 60, 100, 150, �200 rpm |
|---|---|
| reproducibility | 1.00% |
| measurement_range | 25 to 150,000 mPa.s |
| temperature_range | - |
| model | PVM-1010 |
|
Model No. |
PVM-1010 |
PVM-1020 |
PVM-1030 |
|
Measuring Range |
25 to 150,000 mPa.s |
50 to 300,000 mPa.s |
200 to 1,200,000 mPa.s |
|
Rotor |
B1, B2, B3, B4 |
||
|
Rotor Speed |
60, 100, 150, 200 rpm |
||
|
Accuracy |
±2.0% (full scale) |
||
|
Display |
LCD |
||
|
Repeatability |
1.0% |
||
|
Electrical Requirement |
AC/DC lithium batteries |
||
|
Catalogue No |
6505005-04 |
6505010-04 |
6505015-04 |
