Availability : 2 - 3 weeks

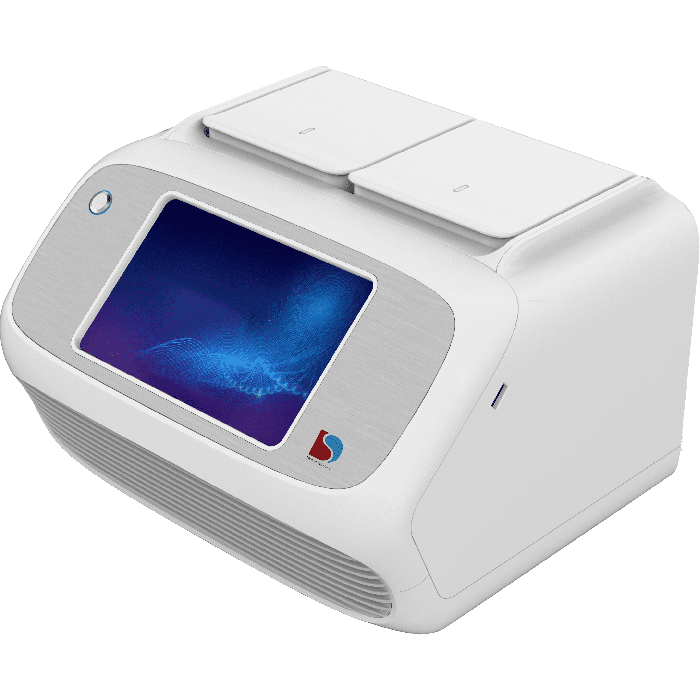

TheDenverRTR-1020 real time PCR is applicable for real-time detection in farming, breeding, pasteurization, and water sources along with other useful application for detecting and diagnosis epidemic disease, inspection and quarantine in the field of food safety and R & D sectors.
RTR-1010 is fluorescence quantitative PCR types with Marlow custom peltier design.
| number_of_cycle | - |
|---|---|
| gradient_temp_range | - |
| power | 250 W |
| resolution | - |
| temperature_range | 0 to 100�C |
| capacity | 16x0.2 ml(2x8 well, dual block) |
| model | RTR-1020 |
|
Model |
RTR-1010 |
RTR-1020 |
|
|
Capacity |
16x0.2 ml(2x8 well, dual block) |
||
|
Reaction Volume |
10 to 100 µl |
||
|
Display |
7 inch TFT Display |
||
|
Temperature Range |
0 to 100°C |
||
|
Resolution |
0.1 °C |
||
|
Uniformity |
± 0.25 °C |
||
|
Accuracy |
± 0.25 °C |
||
|
Temperature Control |
Block/Tube |
||
|
Sensitivity |
1 Copy |
||
|
Test Dynamic Range |
1 to 1010 Copies |
||
|
Fluorescent Dye |
F1:FAM/SYBR Green I, F2:HEX/VIC/JOE/TET |
||
|
Channel |
Single Channel |
Dual Channel |
|
|
Ramping Rate |
6 °C/s |
||
|
Hot Lid Temperature |
30 to 115°C (Default 105°C) |
||
|
Excitation Wavelength |
460 to 550 nm |
||
|
Emission Wavelength |
F1: 520 to 540 nm |
F1: 520 to 540 nm & F2: 540 t0 580 nm |
|
|
Detector |
Photoelectric Detector |
||
|
Function |
Absolute/Relative Quantifications/Melting curve/Genotyping |
||
|
Connectivity |
Wi-Fi, USB2.0 |
||
|
Power Consumption |
250 W |
||
|
Dimensions |
300x267x198 mm |
||
|
Weight |
5.5 kg |
||
|
Electrical Requirements |
DC15 V |
||
|
Catalogue No. |
6205005-00 |
6205010-00 |
|
