Availability : 2 - 3 weeks

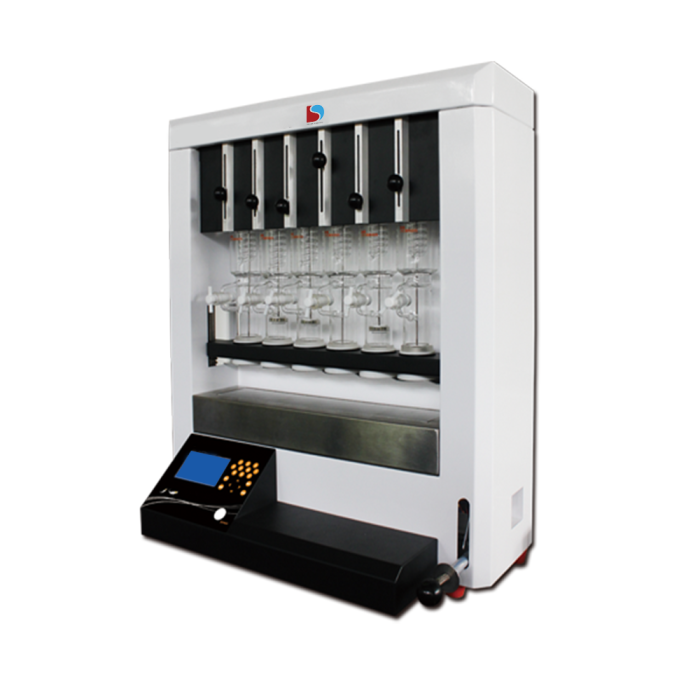

Soxhlet FAT Analyzer FA-1150 is suitable for the separation of a material and a group of elements from solid and semi-solid samples giving by the Soxhlet method and combine with useful functions such as soaking, extraction, leaching, heating, condensation and solvent recovery.
This analyzer used for the determination of different substances present in products corresponding to foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber, plastics, and other materials. Accommodate up to 6 samples simultaneously.
A wide range of features and measurements makes this instrument perfect for Soxhlet Extraction, Soxhlet Hot Extraction, Continue Flow Extraction, Hot Extraction, CH Standard methods of samples in your laboratory.
| volume | 6 pcs/batch |
|---|---|
| reproducibility | Relative error 1% |
| measurement_range | 0.1 T0 100% |
| power | 2600 W |
| temperature_range | RT +5 TO 300? |
| capacity | 150 ml |
| model | FA-1150 |
|
Model |
FA-1080 |
FA-1150 |
|
Capacity |
80 ml |
150 ml |
|
Temperature Range |
RT +5 TO 300? |
|
|
Accuracy |
±1? |
|
|
Reproducibility |
- |
Relative error 1% |
|
Display |
4.3-inch LCD |
Vertical screen |
|
Solvent Recovery |
≥80% |
?85% |
|
Measuring Range |
0.1 T0 100% |
|
|
Volume/ Batch |
6 pcs/batch |
|
|
Sample |
0.5 to 15g |
|
|
Extraction Time |
20 to 80% |
- |
|
Alarm |
sound, light, and LCD screen |
- |
|
Power Consumption |
1000 W |
2600 W |
|
Dimension |
650×320×715 mm |
650×380×720 mm |
|
Weight |
35 kg |
50 kg |
|
Electrical Requirement |
AC±10%, 220V/50Hz |
|
|
Catalogue No. |
190050502 |
190051002 |
