Availability : 2 - 3 weeks

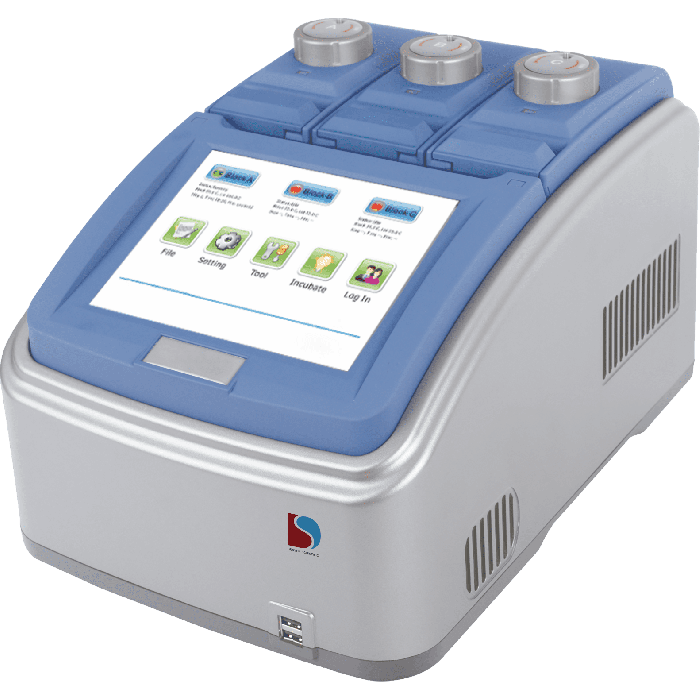

Trio Block Thermal Cyclers TCM-4010T equipped with three independent blocks in one instrument. Both multiuser environments, as well as users with lower sample numbers but different samples, will enjoy this model.
The three-block design and the specific Temperature Optimisation Step function support the fast optimization of ideal annealing temperatures with Fast Ramping and Best Accuracy, high-performance sample blocks.
| number_of_cycle | 100 |
|---|---|
| gradient_temp_range | 30 to 100? |
| power | - |
| resolution | 0.1? |
| temperature_range | 0 to 100? |
| capacity | 3�(32�0.2 ml) |
| model | TCM-4010T |
|
Model |
TCM-4005T |
TCM-4010T |
|
Capacity |
3×(32×0.2 ml) |
|
|
Display |
LCD, 8 inch, 800×600 pixels, TFT |
|
|
Temperature Range |
0 to 100? |
|
|
Number of Program |
10000 +(USB FLASH) |
|
|
Uniformity |
≤± 0.4? |
≤± 0.3? |
|
Accuracy |
≤± 0.3? |
≤± 0.2? |
|
Resolution |
0.1? |
|
|
Number of Cycle |
100 |
|
|
Number of Step |
30 |
|
|
Holding Temperature |
4? |
|
|
Temperature Control |
Block\Tube |
|
|
Heating Rate |
4.5?/s |
5?/s |
|
Cooling Rate |
4?/s |
|
|
Ramping Rate Adjustable |
0.1 to 4.5? |
0.1 to 5? |
|
Gradient Temp. Range |
30 to 100? |
30 to 100? |
|
Gradient Uniformity |
- |
- |
|
Gradient Spread |
- |
1 to 30? |
|
Gradient Mode |
Independently set 3 gradient temperature |
- |
|
Hot Lid Height Adjustable |
Step less Adjustable |
|
|
Hot Lid Temperature |
30 to 110? |
|
|
Connectivity |
USB 2.0, LAN |
|
|
Temp Increment/Decrement |
0.1 to 10.0? |
|
|
Increase/Decrease in Time |
1 Sec to 600 Sec |
|
|
Power consumption |
600 W |
|
|
Overall Dimensions |
390×270×255 mm |
|
|
Net Weight |
9 kg |
|
|
Electrical Requirements |
AC85 to 264 V , 47 63 Hz |
|
|
Catalogue No. |
620350503 |
620351003 |
