Availability : 2 - 3 weeks

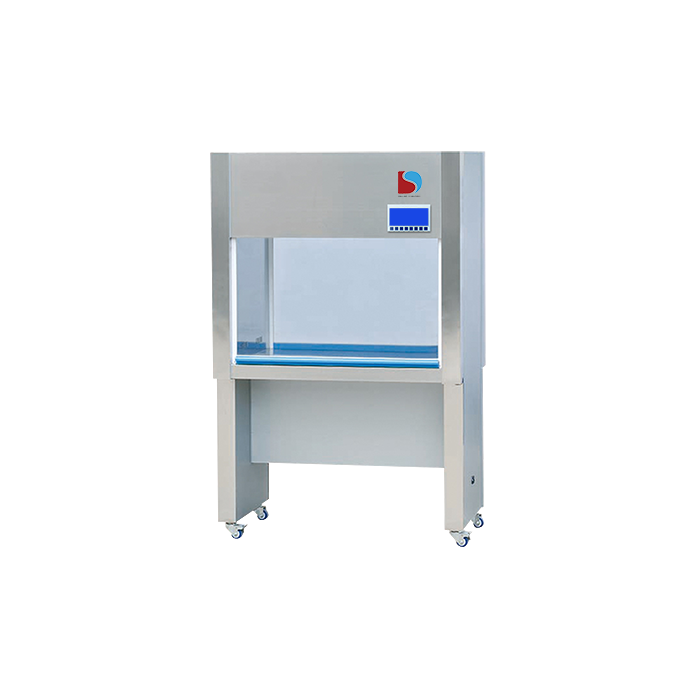

Vertical Laminar Flow Cabinet LVB-120 provide hygienic and disinfected conditions for the processed material, recommended for a non-hazard sample.
Used in medicine, pharmacy, and biological, chemical experiment, operating room, foodstuff, drinks, and cosmetic, stock rising, and aviation work.
It is a general-purpose workbench, that delivers clean airflow from the top to the bottom in the vertical direction. Accommodates maximum no. of colony rate: ≤0.5 per utensil hour (90 mm utensil) and different air velocity ranging from 0.25-0.45m/s to 0.36-0.54m/s.
Features with HEPA Filter, UV lamp, sliding glass door, ventilating slot, color plate, and LED source. Deliver best and economic free environment for inflexible contamination requirements on pharmaceutical, food industries, biotech, and much more Industries. Our flow cabinet enclosed on the sides and kept under constant pressure to prevent contamination.
| Cleanliness | Grade 100 |
|---|---|
| working_area | 870x600x520 mm |
| velocity | 0.25-0.45m/s |
| noise | ?62Db |
| model_type | Single-Single-Vertical |
| power | 400 W |
| model | LVB-120 |
|
Model |
LVB-110 |
LVB-120 |
LVB-130 |
LVB-140 |
LVB-150 |
|
Type |
Single-Single-Vertical |
Single-Single-Vertical |
Double-Single-Vertical |
Double-Double-Vertical(Medical |
Three-Single-Vertical(Medical? |
|
Cleanliness |
Grade 100 |
||||
|
Velocity |
0.25-0.45m/s |
0.36-0.54m/s |
0.25-0.45m/s |
||
|
Material |
304 Stainless steel |
||||
|
No. of colony |
≤0.5per utensil.hour(90mm utensil) |
||||
|
Noise |
≤62Db |
||||
|
Illumination |
≥300LX |
||||
|
Light |
LED |
||||
|
HEPA filter No. and Size |
695×460×38×1 |
865x555x38x1 |
|
|
1795x555x38 mm x1 |
|
Power Consumption |
300 W |
400 W |
800 W |
7500 W |
1200 W |
|
Certification |
ISO 9001 |
||||
|
Working Area |
700×500×520 mm |
870x600x520 mm |
1140x550x415 mm |
1340x700x520 mm |
1800x625x545 mm |
|
Overall Dimension |
850×580×1600 mm |
1050x680x1600 mm |
1300X550X1600 mm |
1500x740x1620 mm |
1920x740x1600 mm |
|
Weight |
130 kg |
75 kg |
|
150 kg |
250 kg |
|
Electrical Requirement |
AC, 220 V/50Hz |
||||
|
Catalogue No. |
380050502 |
380051002 |
380051502 |
380052002 |
380052502 |
