Availability : 2 - 3 weeks

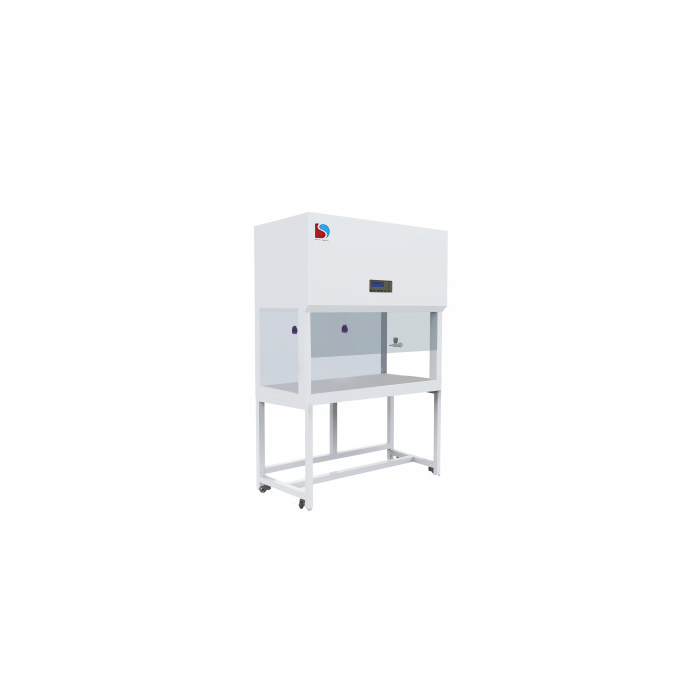

Vertical Laminar Flow Cabinets LVC-110 provide a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.
The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environments.
| Cleanliness | - |
|---|---|
| working_area | - |
| velocity | 0.3-0.5m/s |
| noise | <60dB |
| model_type | - |
| power | 350W |
| model | LVC-110 |
|
Model |
LVC-110 |
LVC-120 |
||
|
Work Surface Height |
750 mm |
|||
|
Display |
LED Display |
|||
|
Airflow Velocity (m/s) |
Average of 0.3~0.5m/s |
|||
|
Material |
Main Body: Cold-rolled steel with anti-bacteria powder coating |
|||
|
Work Table: 304 stainless steel |
||||
|
Pre-filter |
Polyester fiber, washable |
|||
|
HEPA Filter |
99.999% efficiency at 0.3um |
|||
|
Noise |
<60Db |
|||
|
Front Window |
Manual, 5mm toughened glass, anti-UV |
|||
|
Max Opening (mm) |
350mm |
350mm |
||
|
UV Lamp |
18W*1 |
30W*1 |
||
|
Emission of 253.7 nanometers |
||||
|
Fluorescent Lamp |
21W*1 |
28W*1 |
||
|
Consumption (watt) |
350W |
600W |
||
|
Caster |
Universal caster with leveling feet |
|||
|
Power Supply |
AC 220V±10%, 50/60 Hz; 110V±10%, 60 HZ |
|||
|
Standard Accessories |
Fluorescent lamp, UV lamp*2, Base stand |
|||
|
Packing Dimension |
1190x890x1340 mm |
1590x890x1340 mm |
||
|
Internal Dimension |
940x560x545 mm |
1340x560x545 mm |
||
|
External Dimension |
1040x660x1770 mm |
1440x660x1770 mm |
||
|
Gross Weight |
150 kg |
174 kg |
||
|
Electrical Requirements |
110V |
220V |
110V |
220V |
|
Catalogue No. |
380150501 |
380150502 |
380151001 |
380151002 |
