Availability : 2 - 3 weeks

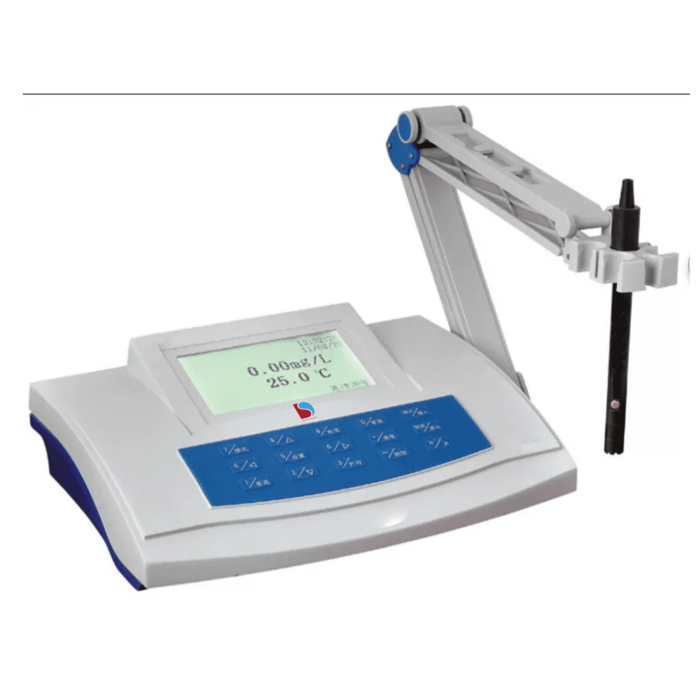

Dissolve DO Meter DO-200 designed with the advanced technology with 3 reading modes: smart-read mode, continuous-read mode, and timed-read mode for dissolved oxygen, concentration, and temperature measurement in water, wastewater, and applications. Equipped with a large backlit LCD display. Automatic temperature compensation ensures accurate reading over the entire range along with a stability indicator which automatically shows current measurement status and useful parameters are concentration, saturation, and temperature. A built-in universal power adaptor. Available in 3 reading modes: smart-read mode, continuous-read mode, and timed-read mode.
| source | - |
|---|---|
| calibration | zero oxygen, full scale |
| ion_concentration_accuracy | - |
| ion_concentration_range | - |
| ntu_range | - |
| sample_bottle | - |
| sample_capacity | - |
| do_accuracy | �0.10 mg/L |
| do_saturation_range | 0 to 300 % |
| do_range | 0.00 to 45.00 mg/L |
| conductivity_accuracy | - |
| conductivity_resolution | - |
| conductivity_range | - |
| temperature_compensation | Auto: 0 to 40? |
| mv_accuracy | - |
| mv_resolution | - |
| mv_range | - |
| ph_accuracy | - |
| ph_resolution | - |
| ph_range | - |
| model_type | - |
| temperature_range | -5 to 115? |
| wavelength | - |
| model | DO-200 |
|
Model |
DO-200 |
|
DO Range |
0.00 to 45.00 mg/L |
|
DO Saturation Range |
0 to 300 % |
|
Temperature Range |
-5 to 115? |
|
DO Accuracy |
±0.10 mg/L |
|
DO Saturation Accuracy |
±2 % FS |
|
Temperature Accuracy |
±0.2% FS |
|
DO Resolution |
0.01 mg/L |
|
DO Saturation Resolution |
0.10% |
|
Temperature Resolution |
0.1? |
|
Parameters |
Concentration/Saturation/? |
|
Display |
LCD |
|
Stability |
±0.07 mg/L, /1h |
|
Mode |
3 |
|
Calibration |
zero oxygen, full scale |
|
Temperature Compensation |
Auto: 0 to 40? |
|
Storage |
500 data set |
|
Interface |
USB |
|
Dimensions |
340x270x280 mm |
|
Weight |
2. 5 kg |
|
Electrical Requirement |
Universal power adaptor DC 9V/800mA |
|
Catalogue No. |
7101510-04 |
