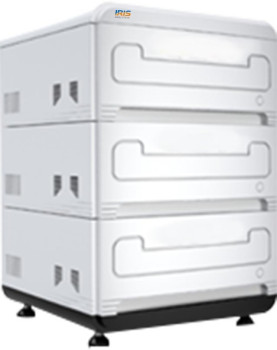

Real-Time PCR System 6 Channel

Real-Time PCR System 6 Channel ITR-6000 has been used in immunology, HGP, forensic medicine, oncology, histology, population biology, paleobiologic, zoology, botany and clinical diagnosis of viruses, tumours and hereditary disorder. Designed with 3×48×0.2 ml (5 to 100 µl) capacity and 10⁰to 10¹⁰test dynamic range. Rapidly set up runs and monitor amplification traces in real time on integrated LCD touch screen. Freshly designed automatic hot-lid without manual operation ensures constant pressure for various tube heights.

Description

Specification

Technical

The system composed of Real-time sample with 3 independent detection system thermal cycler
Achieve accurate results with volumes of up to 5 to 100 µl
Highly cost effective 8 channels along with fluorescent dyes
Buildings with photoelectric sensor detector and LED display
Real time remote control come with wireless facilities
Real time fluorescence quantitative PCR technology
Productions with quick laboratory pollution detection and positive detection rate
Programming interface including quantitative analysis, sample parameter setting, melting curve, gradient amplification curve, sensitivity experiment
Outstanding performance of thermal plate
Design the system for appropriate requirements
Working based on to achieve reagent sample amplification, denaturation of sample under high temperature, annealing and extension under low or optimum temperature
With up to 144 samples detection , supreme thermal cycler performance, incomparable stand-alone functionality and dominant however software are easy to use
USB 2.0 cable and Windows vista/7/8/10 operating system

Model	ITR-6000
Capacity	3×48×0.2 ml(5 to 100 µl):48, 96 and 144(optional)
Reaction Volume	5 to 100 µl
Display	LED
Temperature Range	4 to 100°C
Uniformity	±0.1°C
Temperature Control	±0.1°c
Detector	Photoelectric sensor
Sensitivity	1 copy
Test Dynamic Range	100 to 1010
Fluorescent Dye	F1: FAM, SYBR, GREEN, F2: VIC, HEX, JOE, TET, YELLOW, F3: CY3, F4: ROX, F5: CY5, F6:, CY5.5, F7: Reserved , F8: Reserved
Channel	8
Ramp up Rate	≥ 6.5°C/s
Ramp down Rate	≥ 6.5°C/s
Hot Lid	Automatic
Hot Lid Temperature	30 to 110°C
Sample Linearity	Linear regression coefficient r≥0.999
Fluorescent Intensity Detection	CV≤0.5%
Temperature Control Pattern	Semi-conductor TE module
Operating System	Windows vista/7/8/10
Connectivity	USB 2.0
Overall Dimensions	586×525×780 mm
Weight
Electrical Requirements	100 to 240V, 50/60Hz, 500 to 1500 VA
Catalogue No.	6007005-01	6007005-02

Model	ITR-6000
Capacity	3×48×0.2 ml(5 to 100 µl):48, 96 and 144(optional)
Reaction Volume	5 to 100 µl
Display	LED
Temperature Range	4 to 100°C
Uniformity	±0.1°C
Temperature Control	±0.1°c
Detector	Photoelectric sensor
Sensitivity	1 copy
Test Dynamic Range	100 to 1010
Fluorescent Dye	F1: FAM, SYBR, GREEN, F2: VIC, HEX, JOE, TET, YELLOW, F3: CY3, F4: ROX, F5: CY5, F6:, CY5.5, F7: Reserved , F8: Reserved
Channel	8
Ramp up Rate	≥ 6.5°C/s
Ramp down Rate	≥ 6.5°C/s
Hot Lid	Automatic
Hot Lid Temperature	30 to 110°C
Sample Linearity	Linear regression coefficient r≥0.999
Fluorescent Intensity Detection	CV≤0.5%
Temperature Control Pattern	Semi-conductor TE module
Operating System	Windows vista/7/8/10
Connectivity	USB 2.0
Overall Dimensions	586×525×780 mm
Weight
Electrical Requirements	100 to 240V, 50/60Hz, 500 to 1500 VA
Catalogue No.	6007005-01	6007005-02
