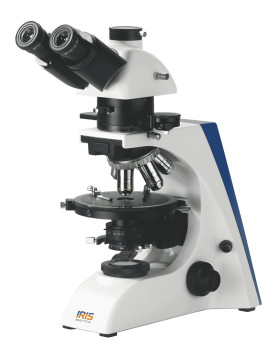

Polarizing Microscope IMP-1200 Series
Categories
Polarizing Microscope IMP-1200 Series

Polarizing Microscope IMP-1200 Series

Polarizing Microscope IMP-1200 Series equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors. Built-in bertrand lens, polarizer, and analyzer, 360° rotatable round stage, filter, condenser, etc. The binocular viewing head with wild field eyepieces and has excellent infinite strain free plan achromatic:4X/0.10-12.1mm and LWD infinite strain free plan achromatic: 5X/0.13(S)-23 mm, objectives, and each eye tube has interpupillary adjustment. This series is capable of providing strong images wit

Description
Specification
Technical

Polarizing Microscope IMP-1200 Series equipped with a high degree of sensitivity and best suited for anisotropic (mineral) specimens such as geology, minerals, metallurgy, university teaching laboratories, and other sectors. Built-in bertrand lens, polarizer, and analyzer, 360° rotatable round stage, filter, condenser, etc. The binocular viewing head with wild field eyepieces and has excellent infinite strain free plan achromatic:4X/0.10-12.1mm and LWD infinite strain free plan achromatic: 5X/0.13(S)-23 mm, objectives, and each eye tube has interpupillary adjustment. This series is capable of providing strong images with a broad field of view, the multipurpose, and perfect for basic studies of samples properties. Come with 5W LED lights, allowing samples to be illuminated for a more comprehensive field of view. Accomplished with the help of particular devices known as retardation plates and optical compensators. The first-order retardation plate is used in optical path differences ranging from a fraction of a wavelength up to several wavelengths. This flexible and multipurpose tool is known by different names, comprising a red plate, red-one plate, lambda (λ) plate, gypsum plate, selenite plate, sensitive violet, or simply a color tint plate and quartz wedge plate is a simple, semi-quantitative optical compensator used to examine optical path differences in a wide range of samples by the quartz wedge.  Built-in a crystalline block of quartz provide a parallel or perpendicular optical axis to the edge of the birefringent crystal.

  • Accomplished with the help of particular devices known as retardation plates and optical compensators.
  • Infinite Strain Free Plan Achromatic, LWD Infinite Strain Free Plan Achromatic: objective, and Backward Quintuple nosepiece
  • Gypsum λ Slip, First Class Red, 1/4λ Slip, (â… -â…£ Class) Quartz Wedge optical compensate system
  • Wild field WF10X/22mm,WF10X22 mm with reticule 0.1mm eyepieces
  • Coaxial coarse & fine adjustment, range 25mm, fine stroke 0.2mm, Fine Division 0.002mm
  • 360° rotatable Revolving Round Stage of  length 156 mm
  • N.A.0.9/0.13 swing out condenser
  • 5W LED lamp light source
  • Different filters including Blue(optional:Amber,Green,Neutral) filters
  • Binocular 30° inclined and a 360° rotatable head with  interpupillary distance 48 to 75 mm and
  • Small foot print and light weight
  • Easy operating with ergonomic design
  • Excellent image quality with an infinite optical system
  • Optional accessories C-mount, Filter
  • 6V/30W Halogen Lamp Illumination as an optional accessories
  • Built-in a crystalline block of quartz provide parallel or perpendicular optical axis to the edge of the birefringent crystal

Technical Specifications

Model

IMP-1201

IMP-1202

IMP-1203

IMP-1204

IMP-1205

IMP-1206

Type

Polarizing Microscope

Viewing Head

Binocular Head, inclined at 30°, 360° Rotatable, Interpupillary Distance: 48-76mm(optional: Binocular Head, inclined at 30°, 360° Rotatable, Interpupillary Distance: 48-76mm)

Optical System

Infinite

Focusing

Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm

Eyepiece

WF10×/22mm,WF10×/22 mm (Reticule 0.1mm)

WF10×/20 mm,WF10×/20 mm (Reticule 0.1mm)

WF10×/22mm,WF10×/22 mm (Reticule 0.1mm)

WF10×/20 mm,WF10×/20 mm (Reticule 0.1mm)

Nosepiece

Backward Quintuple

Objective

Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm
10×/0.25,4.64mm
20×/0.40(S),2.41mm
40×/0.66(S),65mm
60×/0.80 (S),0.33mm
(optional:100×/1.25 (S, Oil),0.12mm)


LWD Infinite Strain Free Plan Achromatic: 5×/0.13(S),24.23mm, 10×/0.25 (S),8.48mm,20×/0.40 (S),8.35mm,50×/70 (S),.95mm
(optional:100×/0.90 (S, Dry).1.1mm)

Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm
10×/0.25,4.64mm
20×/0.40(S),2.41mm
40×/0.66(S),65mm
60×/0.80 (S),0.33mm
(optional:100×/1.25 (S, Oil),0.12mm)


LWD Infinite Strain Free Plan Achromatic: 5×/0.13 (S),24.23mm
10×/0.25 (S),8.48mm
20×/0.40 (S),8.35mm
50×/0.70 (S),.95mm
(optional:100×/0.90 (S, Dry).1.1mm)

Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm
10×/0.25,4.64mm
20×/0.40(S),2.41mm
40×/0.66(S),65mm
60×/0.80 (S),0.33mm
(optional:100×/1.25 (S, Oil),0.12mm)


Stage

Revolving Round Stage of l length 156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’
(optional: Attachable Mechanical Stage Polarizing Attached Mechanical Stage with X-Y movement)

Light Source

5W LED lamp (Optional:6V/30W Halogen  Koehler Illumination) Transmitted and reflected

5W LED lamp (Optional:6V/30W Halogen  Koehler Illumination) Transmitted

5W LED lamp (Optional:6V/30W Halogen  Koehler Illumination) reflected

Polarizing Unit

Scale, Rotatable 360 lockable

-

Scale, Rotatable 360 lockable

-

Scale, Rotatable 360 lockable

Analyzing Unit

rotatable 360°, module type lockable

Optical Compensator

gypsum λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)

Lens

Bertrand Lens

Filter

Blue(optional:Amber,Green,Neutral)

Condenser

N.A.0.9/0.13 swing out condenser

-

N.A.0.9/0.13 swing out condenser

-

N.A.0.9/0.13 swing out condenser

Certification













Optional Accessories

C-mount and filters

Packing Dimension

565×310×410mm

750×360×450mm

750×360×450 mm

565×310×410mm

750×360×450mm

750×360×450 mm

Packing Weight

GW-12.5 kg NW-10 kg

GW-15 kg NW-11 kg

GW-16 kg NW-12 kg

GW-12.5 kg NW-10 kg

GW-15 kg NW-11 kg

GW-16 kg NW-12 kg

Electrical Requirement













Catalogue No.

  440220-05-04

  440220-10-04

  440220-15-04

  440220-20-04

  440220-25-04

   440220-30-04

Technical Specifications

Model

IMP-1201

IMP-1202

IMP-1203

IMP-1204

IMP-1205

IMP-1206

Type

Polarizing Microscope

Viewing Head

Binocular Head, inclined at 30°, 360° Rotatable, Interpupillary Distance: 48-76mm(optional: Binocular Head, inclined at 30°, 360° Rotatable, Interpupillary Distance: 48-76mm)

Optical System

Infinite

Focusing

Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm

Eyepiece

WF10×/22mm,WF10×/22 mm (Reticule 0.1mm)

WF10×/20 mm,WF10×/20 mm (Reticule 0.1mm)

WF10×/22mm,WF10×/22 mm (Reticule 0.1mm)

WF10×/20 mm,WF10×/20 mm (Reticule 0.1mm)

Nosepiece

Backward Quintuple

Objective

Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm
10×/0.25,4.64mm
20×/0.40(S),2.41mm
40×/0.66(S),65mm
60×/0.80 (S),0.33mm
(optional:100×/1.25 (S, Oil),0.12mm)


LWD Infinite Strain Free Plan Achromatic: 5×/0.13(S),24.23mm, 10×/0.25 (S),8.48mm,20×/0.40 (S),8.35mm,50×/70 (S),.95mm
(optional:100×/0.90 (S, Dry).1.1mm)

Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm
10×/0.25,4.64mm
20×/0.40(S),2.41mm
40×/0.66(S),65mm
60×/0.80 (S),0.33mm
(optional:100×/1.25 (S, Oil),0.12mm)


LWD Infinite Strain Free Plan Achromatic: 5×/0.13 (S),24.23mm
10×/0.25 (S),8.48mm
20×/0.40 (S),8.35mm
50×/0.70 (S),.95mm
(optional:100×/0.90 (S, Dry).1.1mm)

Infinite Strain Free Plan Achromatic:4×/0.10,12.1mm
10×/0.25,4.64mm
20×/0.40(S),2.41mm
40×/0.66(S),65mm
60×/0.80 (S),0.33mm
(optional:100×/1.25 (S, Oil),0.12mm)


Stage

Revolving Round Stage of l length 156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’
(optional: Attachable Mechanical Stage Polarizing Attached Mechanical Stage with X-Y movement)

Light Source

5W LED lamp (Optional:6V/30W Halogen  Koehler Illumination) Transmitted and reflected

5W LED lamp (Optional:6V/30W Halogen  Koehler Illumination) Transmitted

5W LED lamp (Optional:6V/30W Halogen  Koehler Illumination) reflected

Polarizing Unit

Scale, Rotatable 360 lockable

-

Scale, Rotatable 360 lockable

-

Scale, Rotatable 360 lockable

Analyzing Unit

rotatable 360°, module type lockable

Optical Compensator

gypsum λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)

Lens

Bertrand Lens

Filter

Blue(optional:Amber,Green,Neutral)

Condenser

N.A.0.9/0.13 swing out condenser

-

N.A.0.9/0.13 swing out condenser

-

N.A.0.9/0.13 swing out condenser

Certification













Optional Accessories

C-mount and filters

Packing Dimension

565×310×410mm

750×360×450mm

750×360×450 mm

565×310×410mm

750×360×450mm

750×360×450 mm

Packing Weight

GW-12.5 kg NW-10 kg

GW-15 kg NW-11 kg

GW-16 kg NW-12 kg

GW-12.5 kg NW-10 kg

GW-15 kg NW-11 kg

GW-16 kg NW-12 kg

Electrical Requirement













Catalogue No.

  440220-05-04

  440220-10-04

  440220-15-04

  440220-20-04

  440220-25-04

   440220-30-04
