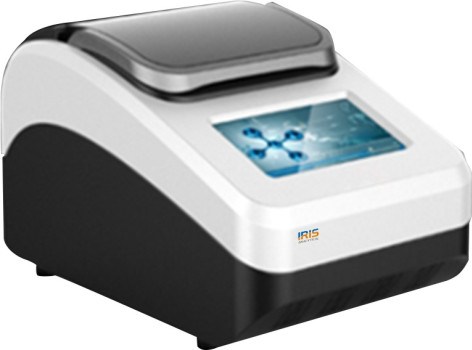

Real-Time PCR System 2 Channel
The Real-Time PCR System 2 Channel ITR-2000 has been used in immunology, HGP, forensic medicine, oncology, histology, population biology, paleobiologic, zoology, botany and clinical diagnosis of viruses, tumours and hereditary disorder. Designed with 8×0.2 ml (5 to 100 µ), 8 strip tubes capacity and 10 to 10 test dynamic range. Rapidly set up runs and monitor amplification traces in real time on integrated TFT display screen.
The Real-Time PCR System 2 Channel ITR-2000 has been used in immunology, HGP, forensic medicine, oncology, histology, population biology, paleobiologic, zoology, botany and clinical diagnosis of viruses, tumours and hereditary disorder. Designed with 8×0.2 ml (5 to 100 µ), 8 strip tubes capacity and 10 to 10 test dynamic range. Rapidly set up runs and monitor amplification traces in real time on integrated TFT display screen.
|
Model |
ITR-2000 |
|
Capacity |
8×0.2 ml (5 to 100 µl), 8 strip tubes |
|
Reagent |
open system (PCR, LAMP, RPA) |
|
Display |
TFT display |
|
Temperature Range |
30 to 99.9°C |
|
Uniformity |
±0.1°C |
|
Accuracy |
±0.1°C |
|
Temperature Control |
±0.1°c |
|
Sensitivity |
10 copy |
|
Test Dynamic Range |
10 to 10 |
|
Fluorescent Dye |
F1: FAM, SYBR Green I F2: HEX, VIC, JOE |
|
Channel |
2 |
|
Ramping Rate |
≥ 6.5°C/s |
|
Hot Lid Temperature |
30 to 110°C |
|
Sample Linearity |
r≥0.98 |
|
Fluorescent Linearity |
r≥0.99 |
|
Fluorescent Intensity Detection |
CV≤1% |
|
Operating System |
LED+PD |
|
Software |
Stand alone and PC software |
|
Connectivity |
USB 2.0 |
|
Overall Dimensions |
300×260×170 mm |
|
Weight |
Light and Portable |
|
Electrical Requirements |
12 V DC |
|
Catalogue No. |
6005505-00 |
|
Model |
ITR-2000 |
|
Capacity |
8×0.2 ml (5 to 100 µl), 8 strip tubes |
|
Reagent |
open system (PCR, LAMP, RPA) |
|
Display |
TFT display |
|
Temperature Range |
30 to 99.9°C |
|
Uniformity |
±0.1°C |
|
Accuracy |
±0.1°C |
|
Temperature Control |
±0.1°c |
|
Sensitivity |
10 copy |
|
Test Dynamic Range |
10 to 10 |
|
Fluorescent Dye |
F1: FAM, SYBR Green I F2: HEX, VIC, JOE |
|
Channel |
2 |
|
Ramping Rate |
≥ 6.5°C/s |
|
Hot Lid Temperature |
30 to 110°C |
|
Sample Linearity |
r≥0.98 |
|
Fluorescent Linearity |
r≥0.99 |
|
Fluorescent Intensity Detection |
CV≤1% |
|
Operating System |
LED+PD |
|
Software |
Stand alone and PC software |
|
Connectivity |
USB 2.0 |
|
Overall Dimensions |
300×260×170 mm |
|
Weight |
Light and Portable |
|
Electrical Requirements |
12 V DC |
|
Catalogue No. |
6005505-00 |
Get in touch for pricing and availability
