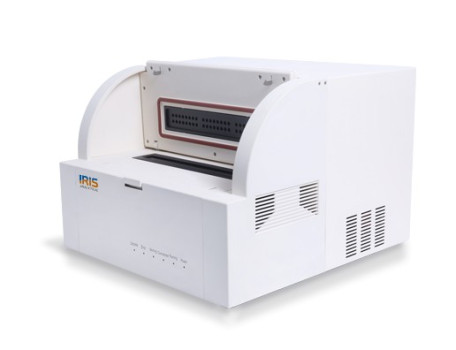

Real-Time PCR System 4 Channel
The Iris ITR-4000 real time PCR is applicable to molecular biology, microbiology, medicine, molecular cloning in genetics, sequence analysis and various fields. It conducts the whole process of DNA amplification and PCR products analysis in an enclosed tube. Through PC control, it realizes real time as well as auto analysis.
The Iris ITR-4000 real time PCR is applicable to molecular biology, microbiology, medicine, molecular cloning in genetics, sequence analysis and various fields. It conducts the whole process of DNA amplification and PCR products analysis in an enclosed tube. Through PC control, it realizes real time as well as auto analysis.
Good practicability
Wide detection scopes
High sensitivity and accuracy
Quantitative analysis
Real-time data monitoring
Real-time analysis display of the melting curves
Automatic assessment of negative or positive results
|
Model |
ITR-4000 |
|
Sample Capacity |
48×0.2ml |
|
Test Dynamic Range |
10-1010 |
|
Full plate fluorescence detection time |
＜3s |
|
Applicable fluorophores
|
F1：FAM, SYBR Green |
|
F2：HEX, VIC, JOE |
|
|
Temperature Range |
30.0-99.9 °C |
|
Temperature Uniformity |
±0.3 °C（@55 °C) |
|
Temperature Accuracy |
±0.1°C（@55°C） |
|
Heating Rate (MAX) |
4°C/s |
|
Cooling Rate (MAX) |
4°C/s |
|
Average Heating Rate |
≥1.8°C/s |
|
Average Cooling Rate |
≥1.8°C/s |
|
Hot-lid Temp. Range |
30-105°C |
|
Fluorescence Repeatability |
CV≤3% |
|
Sample Detection Repeatability |
CV≤3% |
|
Sample Linearity |
r ≥0.98 |
|
Fluorescence Linearity |
r ≥0.99 |
|
Communication Interface |
USB 2.0/RS-232 |
|
Operation System |
Windows XP / Vista / 7 |
|
Dimension |
457×420×335mm |
|
Electrical Requirement |
|
|
Catalogue No. |
6006005-00 |
|
Model |
ITR-4000 |
|
Sample Capacity |
48×0.2ml |
|
Test Dynamic Range |
10-1010 |
|
Full plate fluorescence detection time |
＜3s |
|
Applicable fluorophores
|
F1：FAM, SYBR Green |
|
F2：HEX, VIC, JOE |
|
|
Temperature Range |
30.0-99.9 °C |
|
Temperature Uniformity |
±0.3 °C（@55 °C) |
|
Temperature Accuracy |
±0.1°C（@55°C） |
|
Heating Rate (MAX) |
4°C/s |
|
Cooling Rate (MAX) |
4°C/s |
|
Average Heating Rate |
≥1.8°C/s |
|
Average Cooling Rate |
≥1.8°C/s |
|
Hot-lid Temp. Range |
30-105°C |
|
Fluorescence Repeatability |
CV≤3% |
|
Sample Detection Repeatability |
CV≤3% |
|
Sample Linearity |
r ≥0.98 |
|
Fluorescence Linearity |
r ≥0.99 |
|
Communication Interface |
USB 2.0/RS-232 |
|
Operation System |
Windows XP / Vista / 7 |
|
Dimension |
457×420×335mm |
|
Electrical Requirement |
|
|
Catalogue No. |
6006005-00 |
Get in touch for pricing and availability
