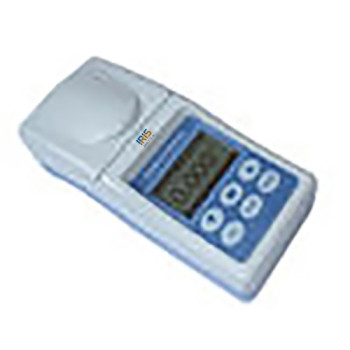

Portable Turbidity Meter PTM-100

Portable Turbidity Meter PTM-100 with quick measurement of the turbidity of the water, caused by dry-weight of suspended materials. The portable turbidity meter work by measuring the amount of light scattered by the dry-weight of suspended materials. Accommodated multi-points calibrations with FTU standard with other measurement units for turbidity and the user now has the choice to perform NTU, EBC, and ASBC measurements at 90° scattered light according to the application and standard required.

This Turbidity Meter covers the ISO7027 requirements. The portable turbidity meter's measuring range is from 0 to 2000

Description

Specification

Technical

This Turbidity Meter covers the ISO7027 requirements. The portable turbidity meter's measuring range is from 0 to 2000 NTU and is identified automatically. Precise measurements by the portable turbidity meters in the lower range, e.g. in drinking water are no problem.

LCD with backlight provide easy calibration
ISO7027 measuring method
Novel appearance, convenient for field application
Multi-points calibration with Formazin standards or zero water
Auto range switch from 0 to 2000 NTUs.
Data storage of 2000 sets and GLP-compliant
SB interfaces for output and powered by AA batteries

Model	PTM-104	PTM-105	PTM-106	PTM-107
Wavelength	860 nm
Sample Capacity	20 to 25 ml
Sample Bottle	25×65 mm
Source	LED
Display	LCD
NTU Range	automatic range switchover , 0.00 to 20.0 and 20.1 to 200	0.00 to 20.0/20.1 to 200/200.01 to 500	0.00 to 20.0/20.1 to 200/200.01 to 1000	0.00 to 20.0/20.1 to 200/200.01 to 2000
0-Drift	≤±0.5%FS
Stability	≤±0.5%FS
Measurement Unit	NTU,FTU,EBC,ASBC
Repeatability	≤0.5%
Calibration	4 points	5 points	6 points	7 points
Certification	CE
Storage	2000 sets
Interface	USB
Dimension	380x280x250 mm
Weight	3Kg
Catalogue No.	7102005-04	7102010-04	7102015-04	7102020-04

Model	PTM-104	PTM-105	PTM-106	PTM-107
Wavelength	860 nm
Sample Capacity	20 to 25 ml
Sample Bottle	25×65 mm
Source	LED
Display	LCD
NTU Range	automatic range switchover , 0.00 to 20.0 and 20.1 to 200	0.00 to 20.0/20.1 to 200/200.01 to 500	0.00 to 20.0/20.1 to 200/200.01 to 1000	0.00 to 20.0/20.1 to 200/200.01 to 2000
0-Drift	≤±0.5%FS
Stability	≤±0.5%FS
Measurement Unit	NTU,FTU,EBC,ASBC
Repeatability	≤0.5%
Calibration	4 points	5 points	6 points	7 points
Certification	CE
Storage	2000 sets
Interface	USB
Dimension	380x280x250 mm
Weight	3Kg
Catalogue No.	7102005-04	7102010-04	7102015-04	7102020-04

Image	Product Detail	Price (Exc. VAT)
#bls_710202004	Portable Turbidity Meter PTM-107 Portable Turbidity Meter PTM-107 with quick measurement of the turbidity of the water, caused by dry-weight of suspended materials. The portable turbidity meter work by measuring the amount of light scattered by the dry-weight of suspended materials 2 - 3 weeks Delivery.	$0.00
#bls_710201504	Portable Turbidity Meter PTM-106 Portable Turbidity Meter PTM-106 with quick measurement of the turbidity of the water, caused by dry-weight of suspended materials. The portable turbidity meter work by measuring the amount of light scattered by the dry-weight of suspended materials 2 - 3 weeks Delivery.	$0.00
#bls_710201004	Portable Turbidity Meter PTM-105 Portable Turbidity Meter PTM-105 with quick measurement of the turbidity of the water, caused by dry-weight of suspended materials. The portable turbidity meter work by measuring the amount of light scattered by the dry-weight of suspended materials 2 - 3 weeks Delivery.	$0.00
#bls_710200504	Portable Turbidity Meter PTM-104 Portable Turbidity Meter PTM-104 with quick measurement of the turbidity of the water, caused by dry-weight of suspended materials. The portable turbidity meter work by measuring the amount of light scattered by the dry-weight of suspended materials 2 - 3 weeks Delivery.	$0.00
