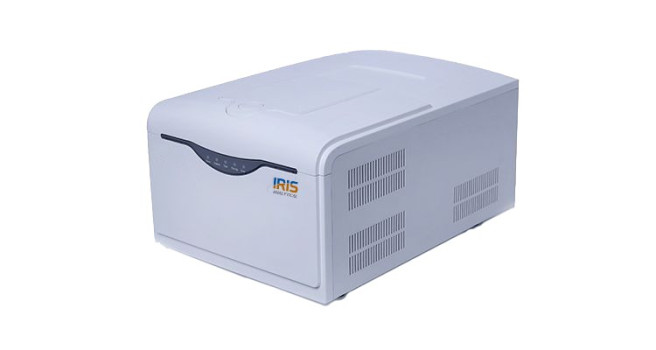

Real-Time PCR System 5 Channel ITR-5000 is based on real-time fluorescence quantitative polymerase chain reaction (PCR) technology, ITR-5000 can be widely used in researches such as immunology, human genome engineering, forensic medicine, oncology, histology, population biology, palaeobiology, zoology and botany, as well as in clinical diagnosis of viruses, tumours and hereditary diseases, etc.
Real-Time PCR System 5 Channel ITR-5000 is based on real-time fluorescence quantitative polymerase chain reaction (PCR) technology, ITR-5000 can be widely used in researches such as immunology, human genome engineering, forensic medicine, oncology, histology, population biology, palaeobiology, zoology and botany, as well as in clinical diagnosis of viruses, tumours and hereditary diseases, etc.
Rapid detection and high sensitivity
6 independent temperature control, simultaneous achievement of different renaturation temperatures
Combination of halogen lamp and CCD optical detection system with high accuracy
Cutting-edge optical fibre and imaging analysis, multi-calibration
Built-in database, applicable to LIS system
With specially designed optical structure, ITR-5000 can cover a variety of fluorochromes in market and adapt to new ones by replacement of software versions rather than changes of hardware. 5 channels of fluorescence detection for your free choice, such as FAM, SYBR Green I/VIC, HEX, JOE, TET/ROX, Texas Red/Cy5/Cy5.5, Quasar 705. What's more, there are annother 3 channels reserved for your special customization.
|
Model |
ITR-5000 |
|
Sample Capacity |
96x0.2ml |
|
Light Source |
Halogen lamp |
|
Detection System |
CCD |
|
Temperature Range |
4-100℃ |
|
Sensitivity |
up to 1 copy |
|
Test Dynamic Range |
100-1010 |
|
Reaction Volume |
5-100μl |
|
Fluorophores Applicable
|
F1：FAM，SYBR F2：VIC，HEX，JOE，TET， |
|
F3：ROX，Texas Red F4：CY5 F5：CY5.5, Quasar705 |
|
|
F6-F8：Reserved |
|
|
Hot Lid |
Electronic hot-lid |
|
Temp. Control |
Semiconductor TE |
|
Uniformity |
±0.2℃ |
|
Accuracy |
±0.1℃ |
|
Heating Rate |
≥4.5℃/s |
|
Cooling Rate |
≥4.5℃/s |
|
Hot-lid Temp. Range |
30-105℃ |
|
Fluorescence Repeatability |
CV ≤ 1% |
|
Fluorescence Extraction Location |
Tube Bottom |
|
Communication Interface |
USB 2.0 |
|
Operation System |
Windows Vista/7/8/10 |
|
Input Power |
100-240V, 50/60Hz, 1000VA |
|
Dimension |
500x350x300mm |
|
Catalogue No. |
60065054 |
|
Model |
ITR-5000 |
|
Sample Capacity |
96x0.2ml |
|
Light Source |
Halogen lamp |
|
Detection System |
CCD |
|
Temperature Range |
4-100℃ |
|
Sensitivity |
up to 1 copy |
|
Test Dynamic Range |
100-1010 |
|
Reaction Volume |
5-100μl |
|
Fluorophores Applicable
|
F1：FAM，SYBR F2：VIC，HEX，JOE，TET， |
|
F3：ROX，Texas Red F4：CY5 F5：CY5.5, Quasar705 |
|
|
F6-F8：Reserved |
|
|
Hot Lid |
Electronic hot-lid |
|
Temp. Control |
Semiconductor TE |
|
Uniformity |
±0.2℃ |
|
Accuracy |
±0.1℃ |
|
Heating Rate |
≥4.5℃/s |
|
Cooling Rate |
≥4.5℃/s |
|
Hot-lid Temp. Range |
30-105℃ |
|
Fluorescence Repeatability |
CV ≤ 1% |
|
Fluorescence Extraction Location |
Tube Bottom |
|
Communication Interface |
USB 2.0 |
|
Operation System |
Windows Vista/7/8/10 |
|
Input Power |
100-240V, 50/60Hz, 1000VA |
|
Dimension |
500x350x300mm |
|
Catalogue No. |
60065054 |
