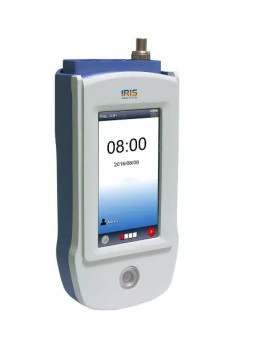

Portable Ion Meter PIM-100
Portable Ion Meter PIM-100

Portable Ion Meter PIM-100

Portable Ion Meter IM-100 used for measurements of specific ions in the water with the use of an ion selective electrode. The available measuring parameters are including pX/Ion concentration/mV/ Temperature. The portable meters for ion concentration and temperature analysis are designed to aids measure samples across a wide range of applications and deliver the features and functionality one look for in a laboratory any other field instrument with it easy features that maximize productivity and minimize training time. A backlit, graphic LCD provides easy to read resolution even in low areas and allows users to store up

Description
Specification
Technical

Portable Ion Meter IM-100 used for measurements of specific ions in the water with the use of an ion selective electrode. The available measuring parameters are including pX/Ion concentration/mV/ Temperature. The portable meters for ion concentration and temperature analysis are designed to aids measure samples across a wide range of applications and deliver the features and functionality one look for in a laboratory any other field instrument with it easy features that maximize productivity and minimize training time. A backlit, graphic LCD provides easy to read resolution even in low areas and allows users to store up to 2000 sets that can be later transferred to a PC.

  • Easily read the sample changing in the measurement process
  • Power-off safety
  • Designed with Rubber foot
  • Simple calibration up to 8 point calibration with automatic
  • Functional measuring parameters including pX/Ion concentration/mV/ Temperature
  • Large, well-structured TFT Touch screen and LCD display with navigation
  • CE Certified
  • Manual temperature compensation and temperature coefficient
  • Maximum storage: 2000 set
  • The  electrodes, temperature probe, buffer accessories are available
  • Auto switch off mode
  • Advanced functions in the identification of standard buffer and ID management
  • Compiled with micro USB and GLP
  • Li-on battery and AA battery
  • Available standard configuration Fluoride ISE, Electrode, ATC Probe, Stirrer



Model

IM-100

Display

TFT Touch screen

Ion Concentration Range

1.000 e-9 to 9.999 e-9

Ion Concentration Accuracy

±0.3 %

pH/p X Range

2 to 20

pH/ p X Accuracy

±0.001

mV Range

±2000.00

mV Accuracy

±0.03 % /  ±0.1 Mv

Temperature Range

-5 to 130℃

Temperature Accuracy

±0.1℃

Calibration

8 point

Parameter

pH /pX/mV(ORP)/RmV/Ion/ Temperature-7

Certification

CE

Storage

 2000 sets

Interface

MicroUSB

Electrical Requirement

Li-on (DC 3.8V)

Catalogue No.

     7102505-04

Model

IM-100

Display

TFT Touch screen

Ion Concentration Range

1.000 e-9 to 9.999 e-9

Ion Concentration Accuracy

±0.3 %

pH/p X Range

2 to 20

pH/ p X Accuracy

±0.001

mV Range

±2000.00

mV Accuracy

±0.03 % /  ±0.1 Mv

Temperature Range

-5 to 130℃

Temperature Accuracy

±0.1℃

Calibration

8 point

Parameter

pH /pX/mV(ORP)/RmV/Ion/ Temperature-7

Certification

CE

Storage

 2000 sets

Interface

MicroUSB

Electrical Requirement

Li-on (DC 3.8V)

Catalogue No.

     7102505-04
